Accurate Unsupervised Photon Counting from Transition Edge Sensor Signals

Context

import os
from src.Utils import save_results, get_means
from src.ExistingAlgorithms import sklearn_available
from src.GaussianMixture import gaussian_mixture

from src.Dataset import dataset_dat, find_repo_root

from sklearn.decomposition import PCA
SKIP = 1
# DATA
ROOT = find_repo_root()
PATH_DATA = os.path.join(ROOT,"data","photon-number-classification","data_boulder")
PATH_RANDOM = os.path.join(ROOT,"content","Preprocess","Demo","randomIndexDemo.npy")

# PREPROCESS
PATH_INIT_MEANS = os.path.join(ROOT,"content","Preprocess","Demo","Mean_Clusters")
PATH_SAVE_LD = os.path.join(ROOT,"content","Preprocess","Demo","Low_Dimension")
# SAVE PLOTS
PATH_RESULTS = os.path.join(ROOT,"content","Results","Demo")
PATH_SAVE_D = os.path.join(PATH_RESULTS,"Density")


weights = [0.]*11 + [1] + [0]

data_train, data_test, expected_prob, db_train, db_test = dataset_dat(
   weights = weights,
   path_data = PATH_DATA,
   path_random_index = PATH_RANDOM,
   signal_size = 8192,
   interval = [0,350],
   standardize = True,

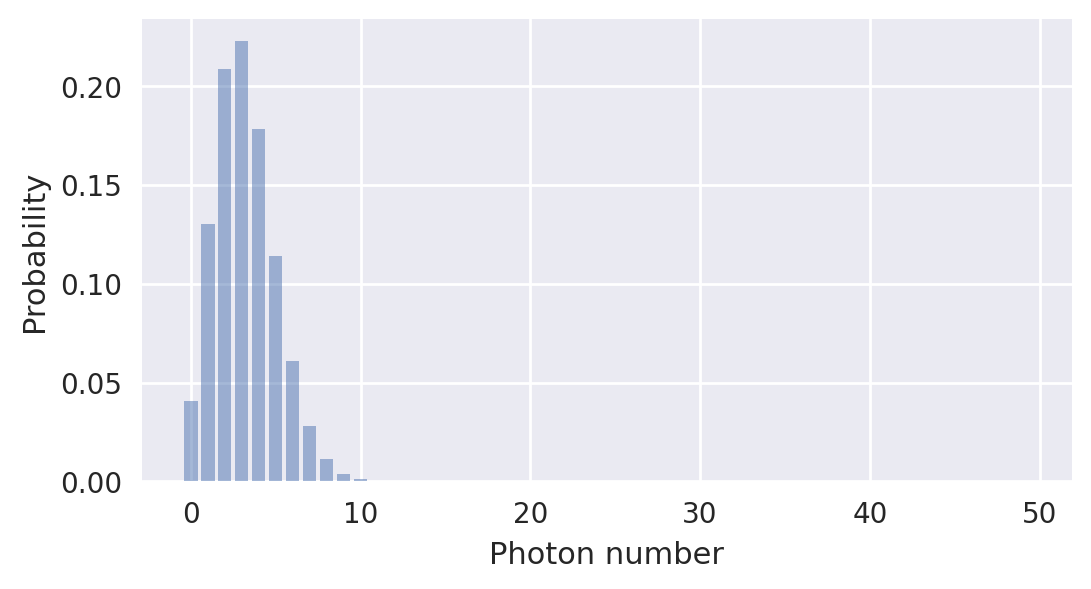

   plot_expected = True,

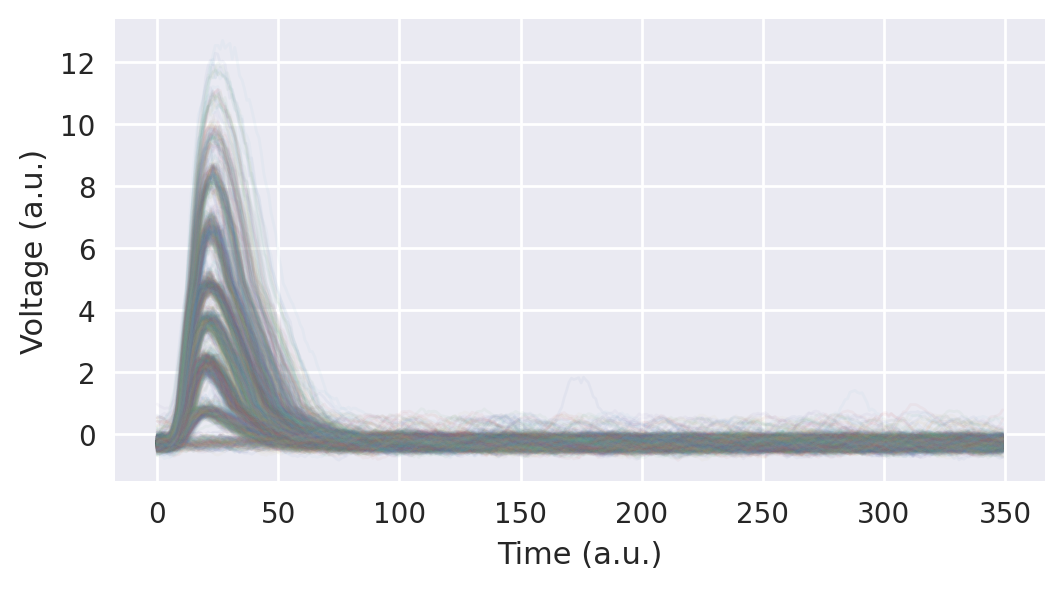

   plot_traces = True,
   n_photon_number = 50
)
data_train, data_test, db_train, db_test = data_train[::SKIP], data_test[::SKIP], db_train[::SKIP], db_test[::SKIP]
<Figure size 1200x600 with 1 Axes>
<Figure size 1200x600 with 1 Axes>
X_l_PCA = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = PCA,
   n_components = 1,
   random_state = 42
)
name_method = 'PCA 1D'
gm = gaussian_mixture(
   X_low = X_l_PCA[::SKIP],
   X_high = data_test,
   number_cluster = 9,
   cluster_iter = 5,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   tol = 1e-4,
   info_sweep = 0,
   plot_sweep = False,
   latex = False
)

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = False,
   ylim=(0, 11),
   plot_scale='linear',
   text = name_method,
   save_path = PATH_SAVE_D
)
<Figure size 1200x600 with 1 Axes>

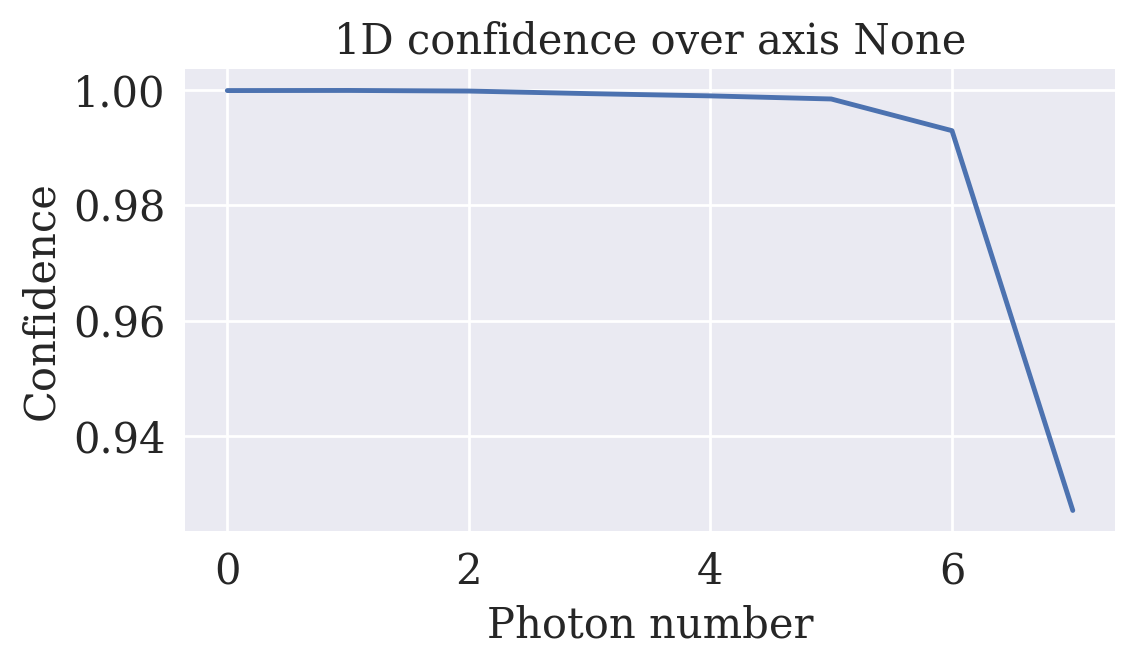

gm.plot_confidence_1d(expected_prob=expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>
data_train, data_test, expected_prob, db_train, db_test = dataset_dat(
   weights = weights,
   path_data = PATH_DATA,
   path_random_index = PATH_RANDOM,
   signal_size = 8192,
   interval = [0,100],
   standardize = True,
   plot_expected = True,
   plot_traces = False,
   n_photon_number = 10
)
<Figure size 1200x600 with 1 Axes>
data_train, data_test, expected_prob, db_train, db_test = dataset_dat(
   weights = weights,
   path_data = PATH_DATA,
   path_random_index = PATH_RANDOM,
   signal_size = 8192,
   interval = [0,100],
   standardize = True,
   plot_expected = False,
   plot_traces = True,
   n_photon_number = 50
)
<Figure size 1200x600 with 1 Axes>
