Synthetic Uniform
Download Notebook

Synthetic Uniform

from src.Utils import save_results, get_means
from src.ExistingAlgorithms import max_value, area, sklearn_available
from src.GaussianMixture import gaussian_mixture

from src.Parametric_UMAP import load_pumap
from src.Parametric_TSNE.train import load_model
from src.Parametric_TSNE.model import Network

from src.Dataset import dataset_dat

from sklearn.decomposition import PCA, KernelPCA, NMF
from sklearn.manifold import Isomap, TSNE

import umap
import torch

1Data

SKIP = 1
# DATA
PATH_DATA = '../data/photon-number-classification/data_boulder'
PATH_RANDOM = 'Preprocess/Uniform/randomIndexUniform.npy'
# PREPROCESS
PATH_INIT_MEANS = 'Preprocess/Uniform/Mean_Clusters'
PATH_SAVE_LD = 'Preprocess/Uniform/Low_Dimension'
# SAVE PLOTS
PATH_SAVE_D = 'Results/Uniform/Density'
PATH_RESULTS = 'Results/Uniform'

weights = [0.0003478958721172963, 0.0003456379713743067, 0.0003744276723215052, 2.7560595871623853e-07,
           5.1048808392493295e-18, 0.28842984940480537, 0.9999999999999999, 0.4483193456686096,
           0.34462236788026945, 0.42745454124885873, 6.426683431466243e-24, 3.0632312612371824e-29, 0.477042684930801]

data_train, data_test, expected_prob, db_train, db_test = dataset_dat(
   weights = weights,
   path_data = PATH_DATA,
   path_random_index = PATH_RANDOM,
   signal_size = 8192,
   interval = [0,350],
   standardize = True,

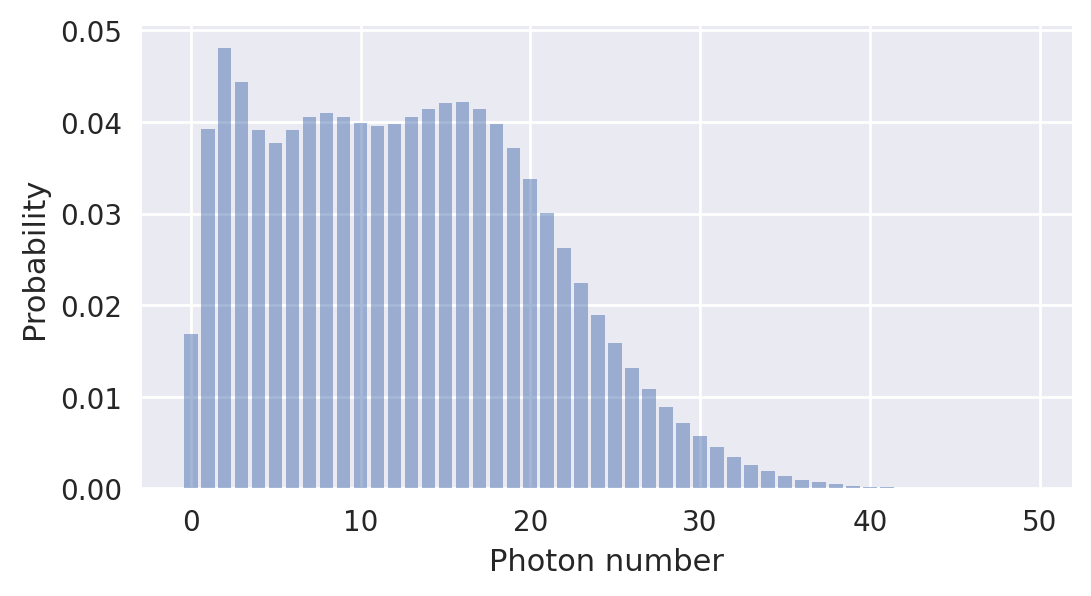

   plot_expected = True,

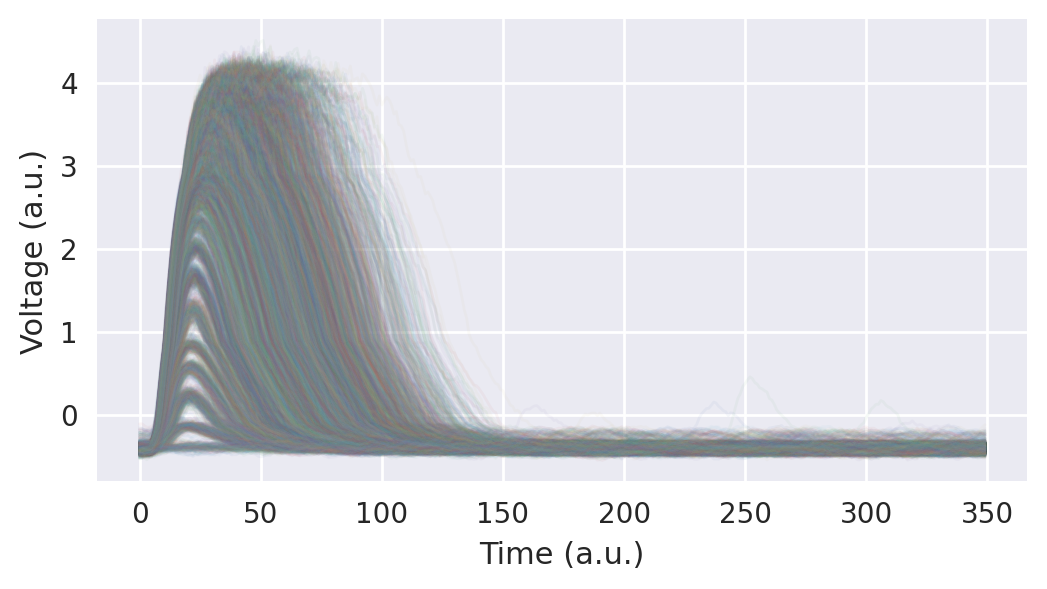

   plot_traces = True,
   n_photon_number = 50
)
data_train, data_test, db_train, db_test = data_train[::SKIP], data_test[::SKIP], db_train[::SKIP], db_test[::SKIP]
<Figure size 1200x600 with 1 Axes>
<Figure size 1200x600 with 1 Axes>

2Methods

2.1Max Value

X_l_MAX = max_value(
   X_high = data_test,
   filtering = True,
   save_path = PATH_SAVE_LD
)
name_method = 'MAX'
gm = gaussian_mixture(
   X_low = X_l_MAX,
   X_high = data_test,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   number_cluster = 17,
   tol = 1e-4,
   cluster_iter = 10,
   width_plot = 6,
   height_plot = 3
)

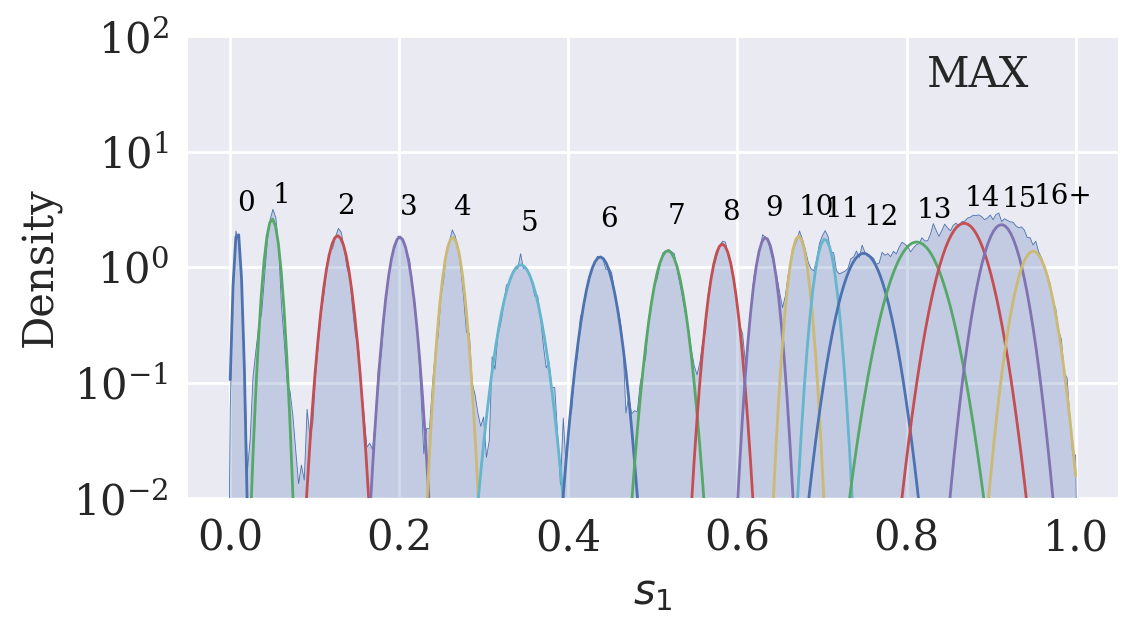

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

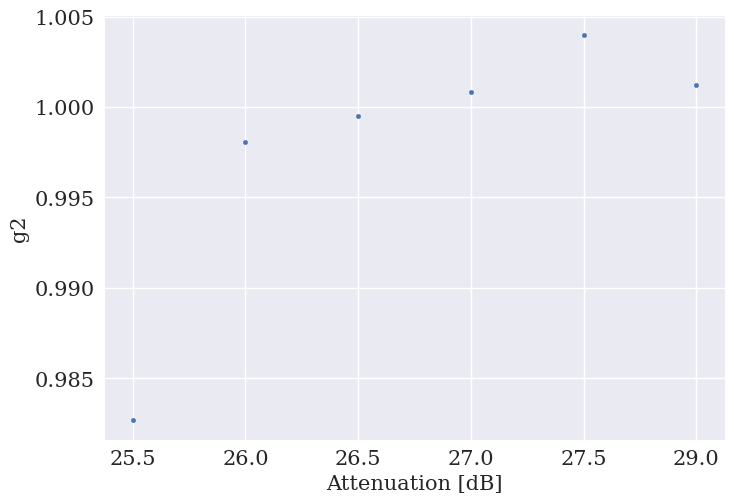

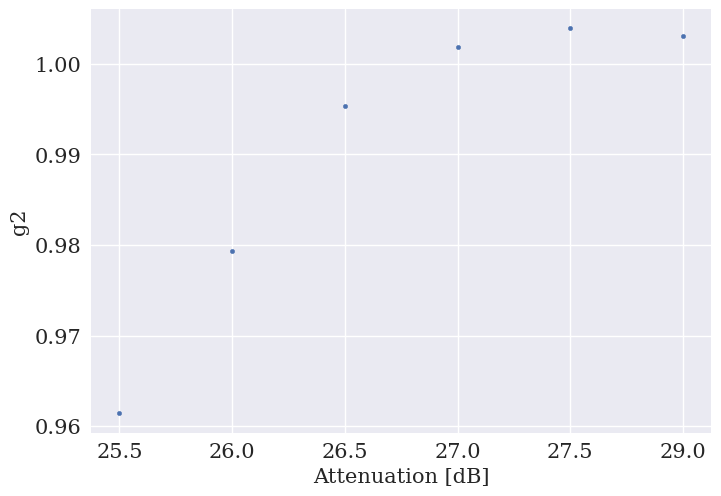

gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

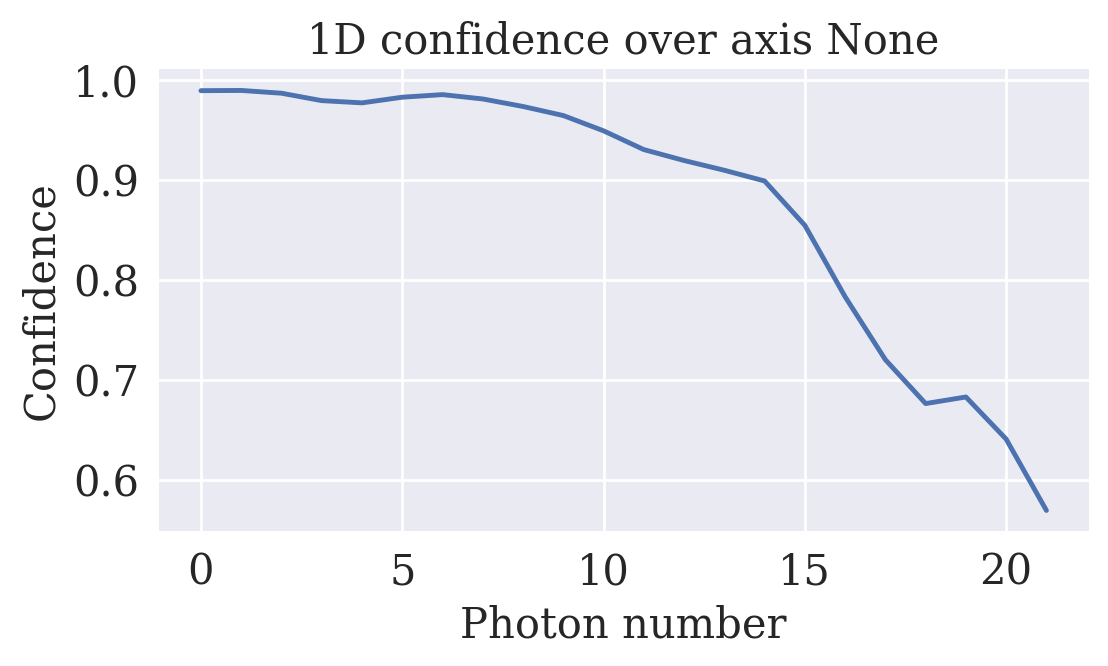

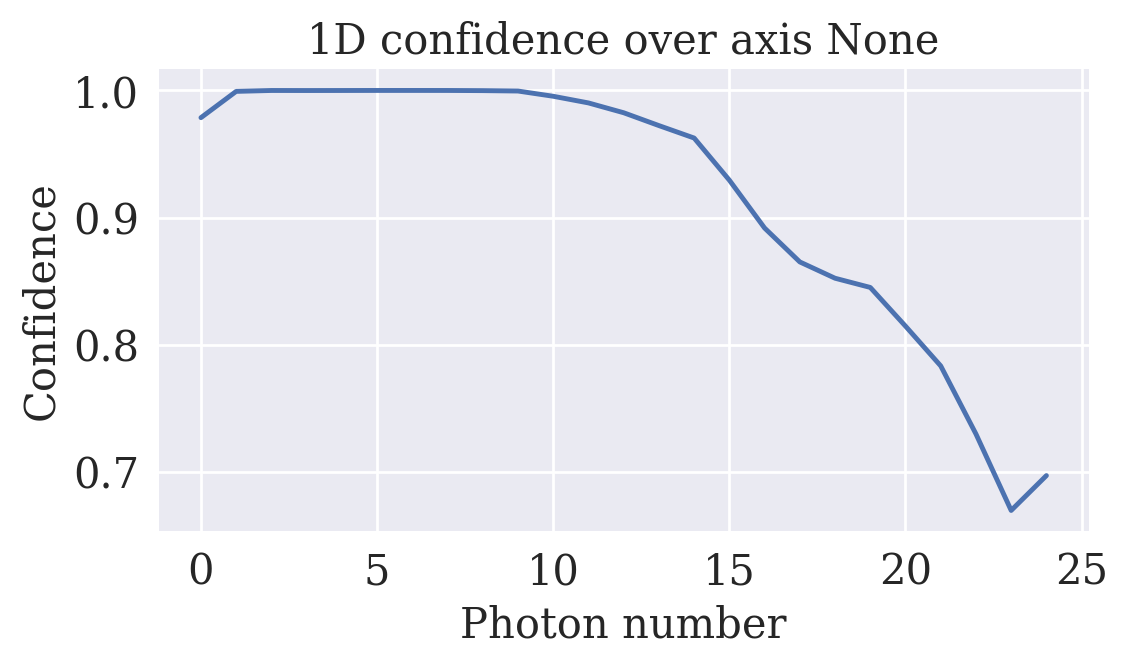

gm.plot_confidence_1d(expected_prob=expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.2Area

X_l_AREA  = area(
   X_high = data_test[:,:150],
   filtering = True,
   plot_filter = True,
   threshold = 0.03,
   critical_frequency = 0.1,
   save_path = PATH_SAVE_LD
)
name_method = 'AREA'
gm = gaussian_mixture(
   X_low = X_l_AREA,
   X_high = data_test,
   number_cluster = 29,
   cluster_iter = 3,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   tol = 1e-4,
   width_plot=6,
   height_plot=3
)

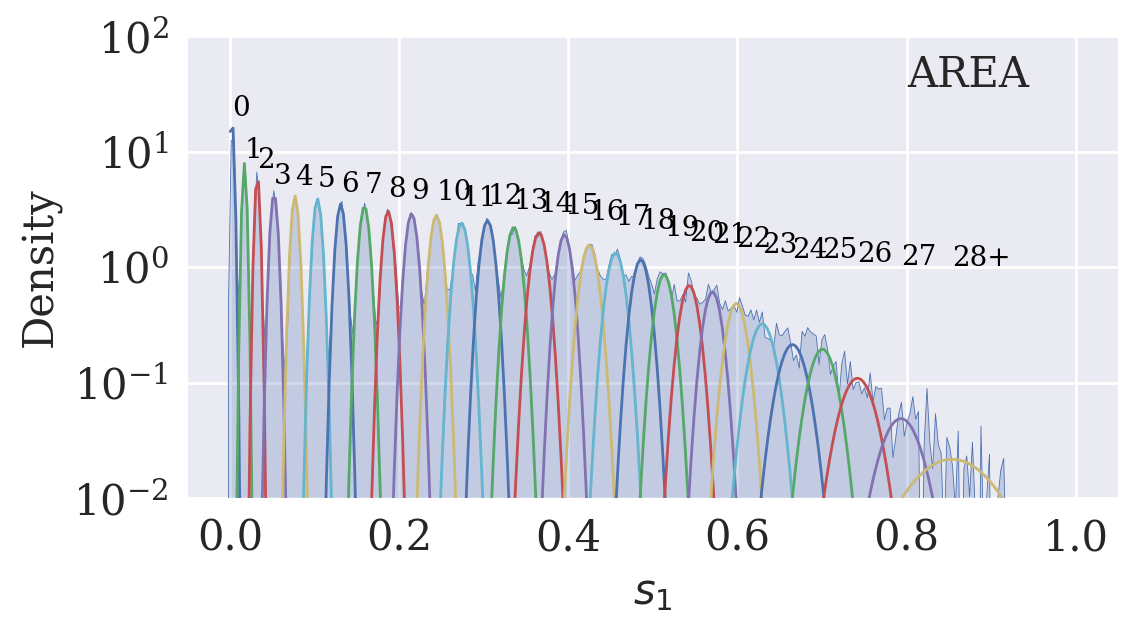

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

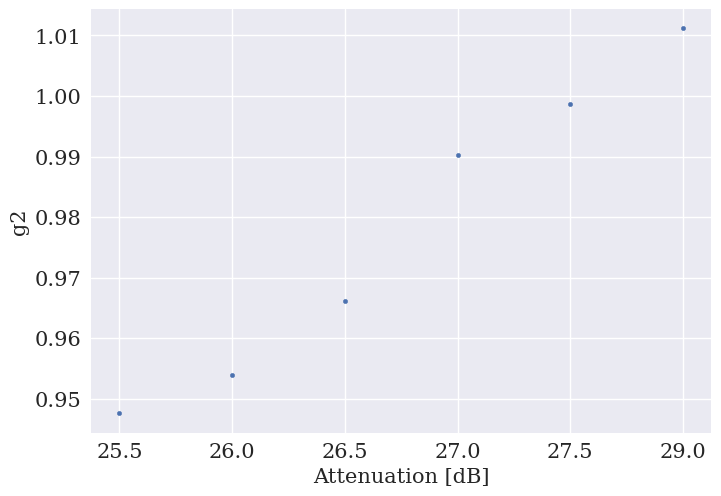

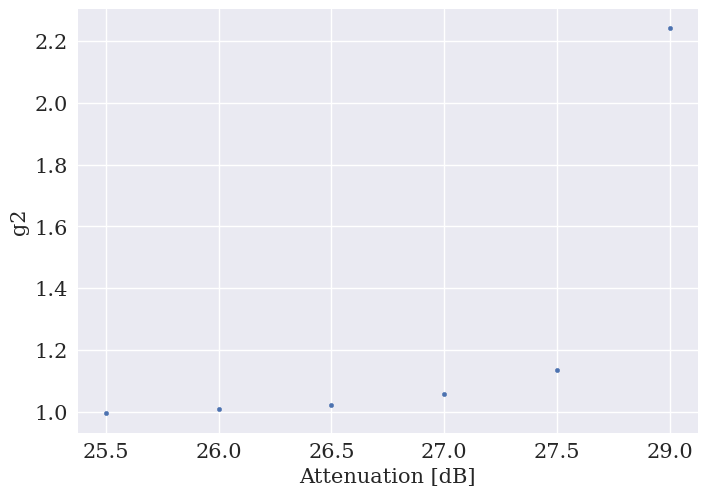

gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

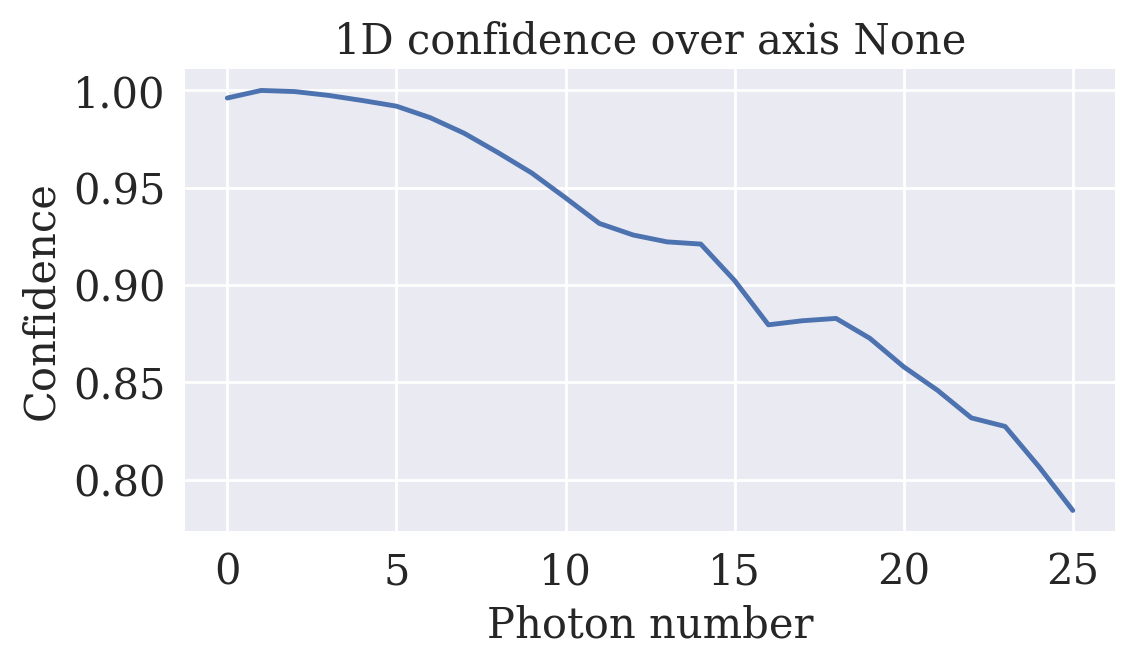

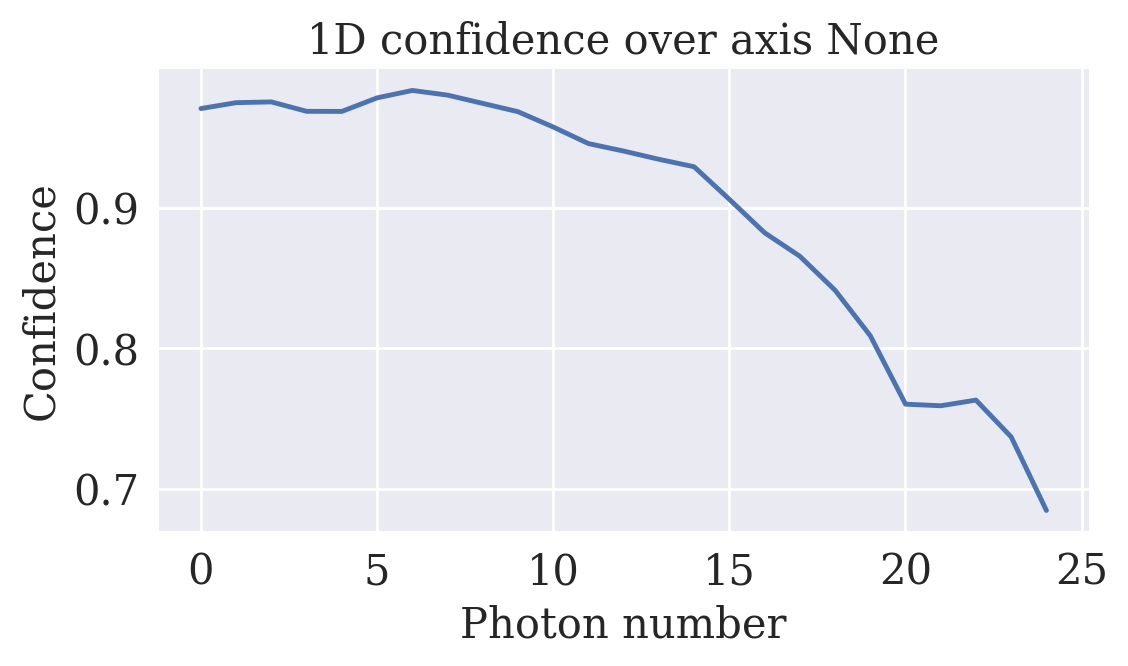

gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.3Principal Component Analysis (PCA)

X_l_PCA = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = PCA,
   n_components = 1,
   random_state = 42
)
name_method = 'PCA 1D'
gm = gaussian_mixture(
   X_low = X_l_PCA[::SKIP],
   X_high = data_test,
   number_cluster = 26,
   cluster_iter = 5,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   tol = 1e-4,
   info_sweep = 0,
   plot_sweep = False,
   latex = False
)

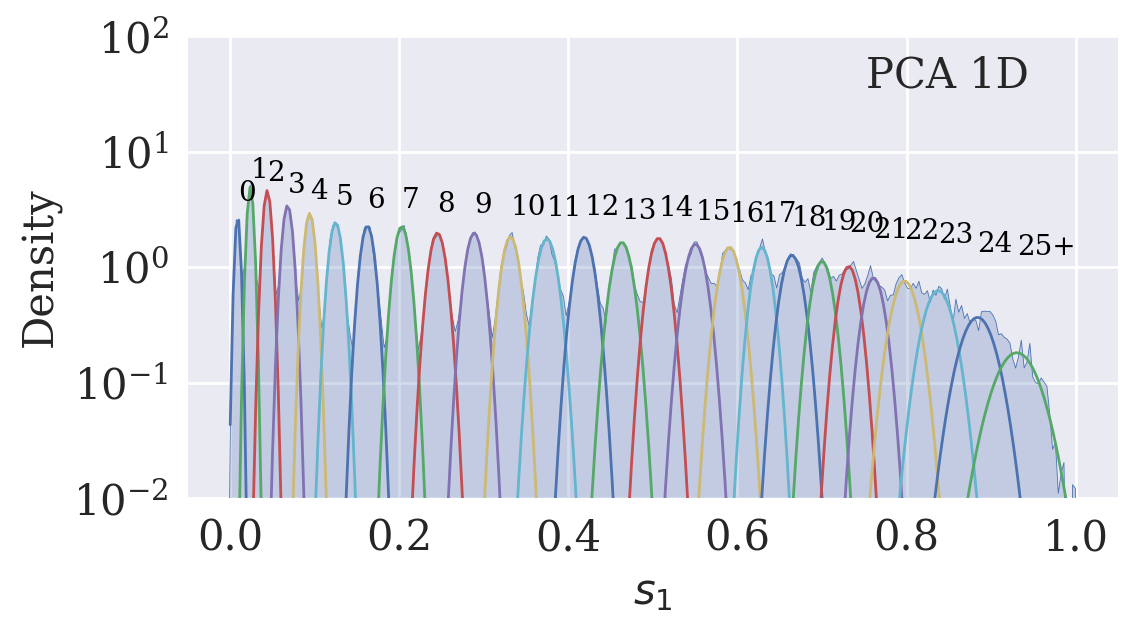

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

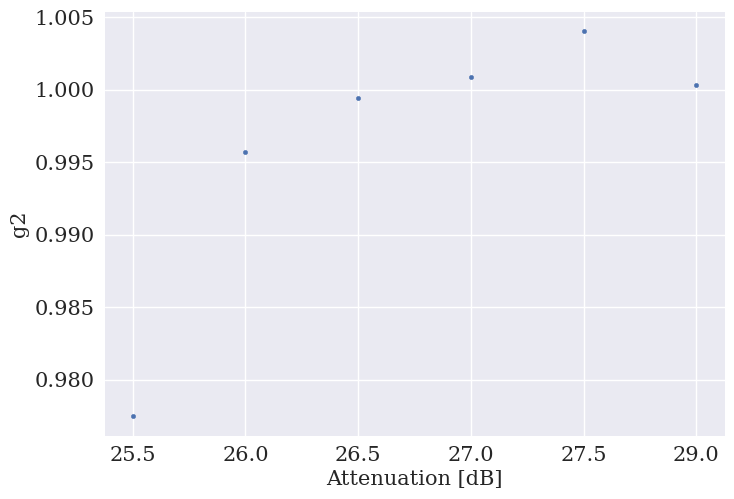

gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

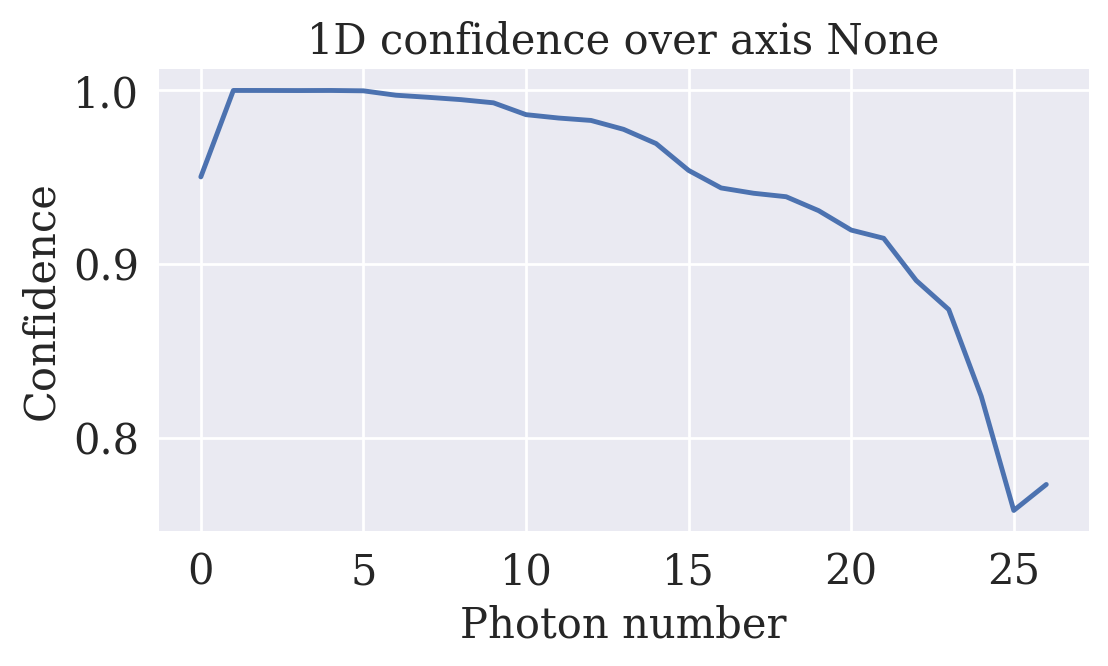

gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>
X_l_PCA = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = PCA,
   n_components = 2,
   random_state = 42
)

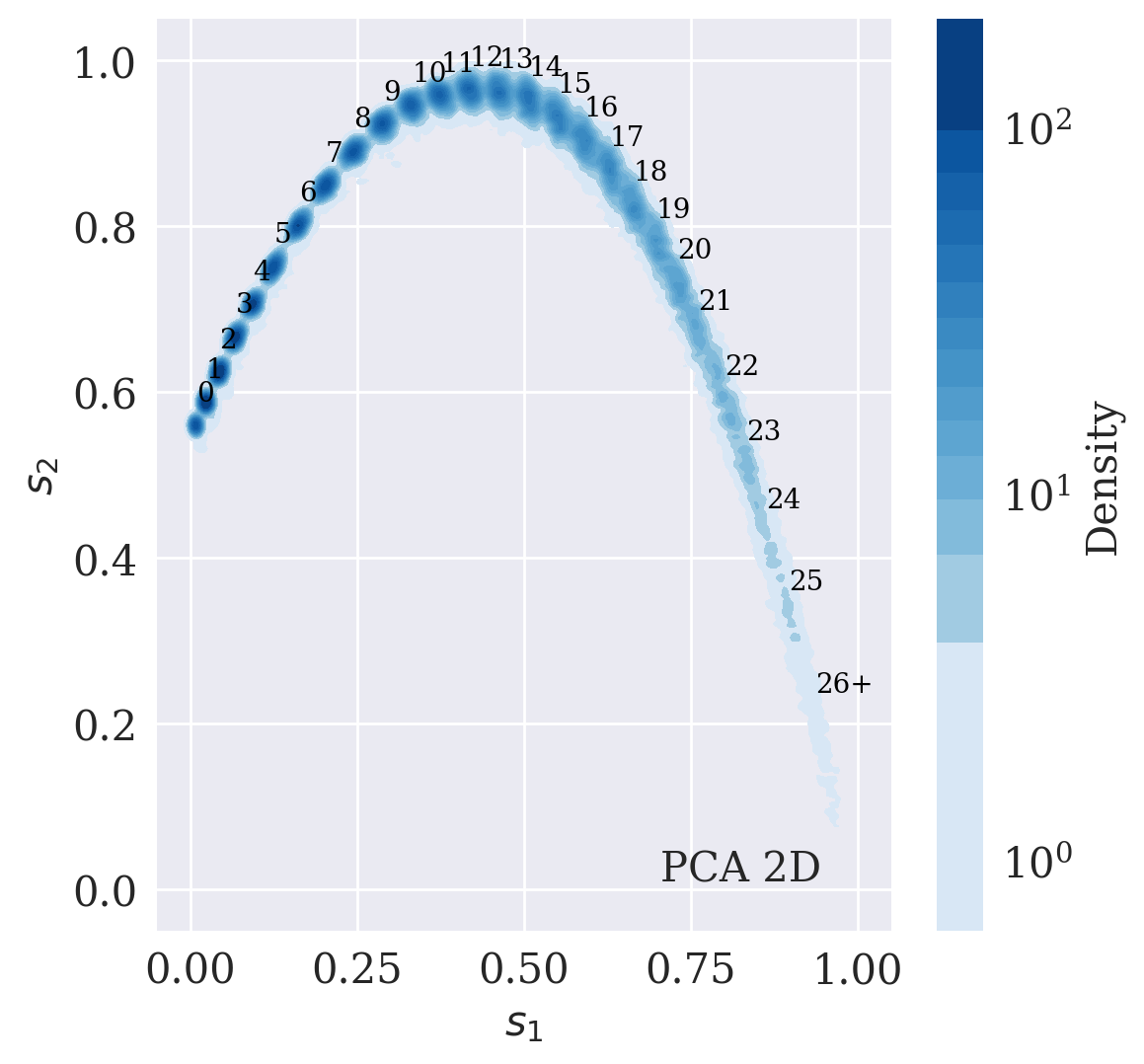

name_method = 'PCA 2D'
gm = gaussian_mixture(
   X_low = X_l_PCA[::SKIP],
   X_high = data_test,
   number_cluster = 27,
   cluster_iter = 5,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   tol = 1e-4,
   width_plot=6,
   height_plot=6
)

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
/srv/conda/envs/notebook/lib/python3.12/site-packages/seaborn/distributions.py:1176: UserWarning: Log scale: values of z <= 0 have been masked
  cset = contour_func(
<Figure size 1200x1200 with 2 Axes>
<Figure size 800x550 with 1 Axes>

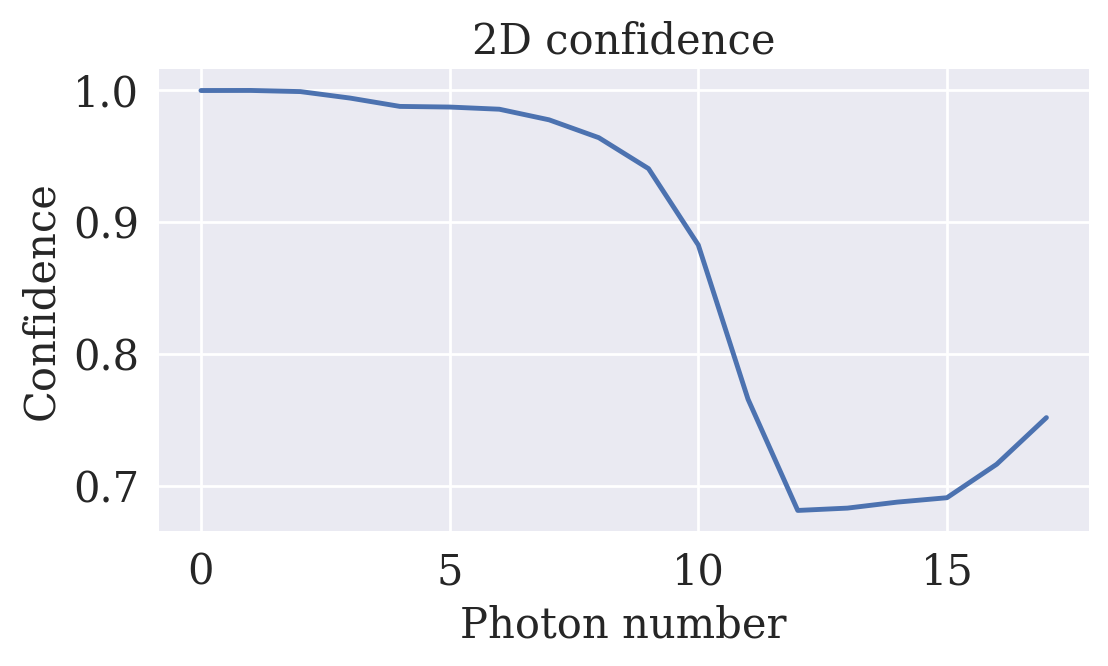

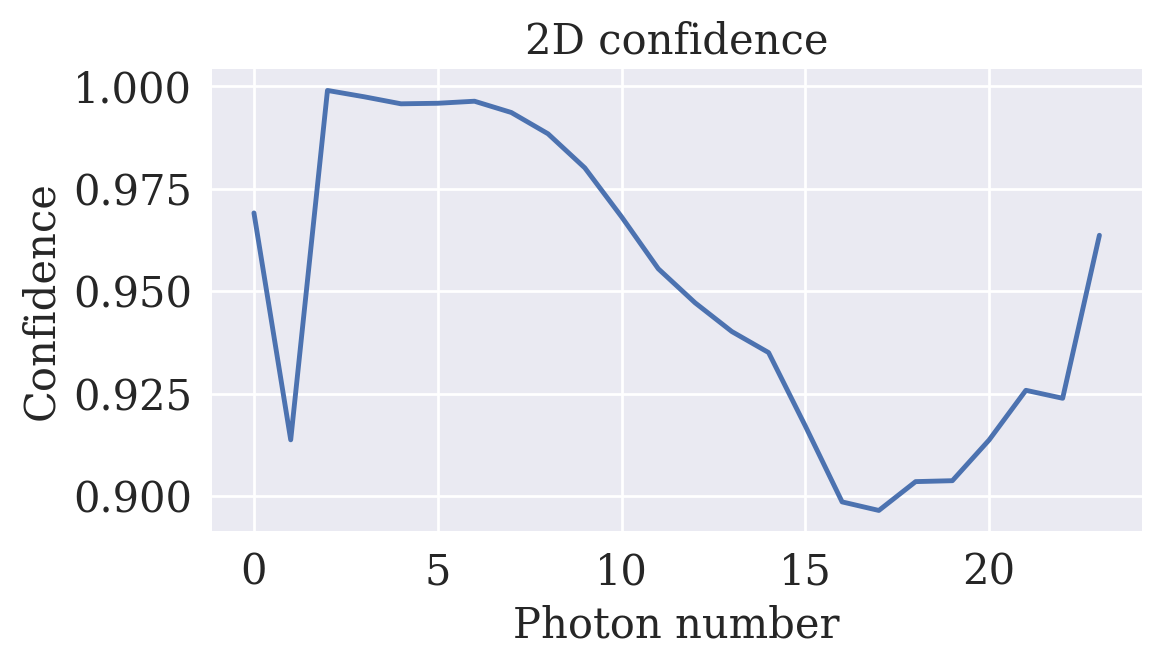

gm.plot_confidence_2d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

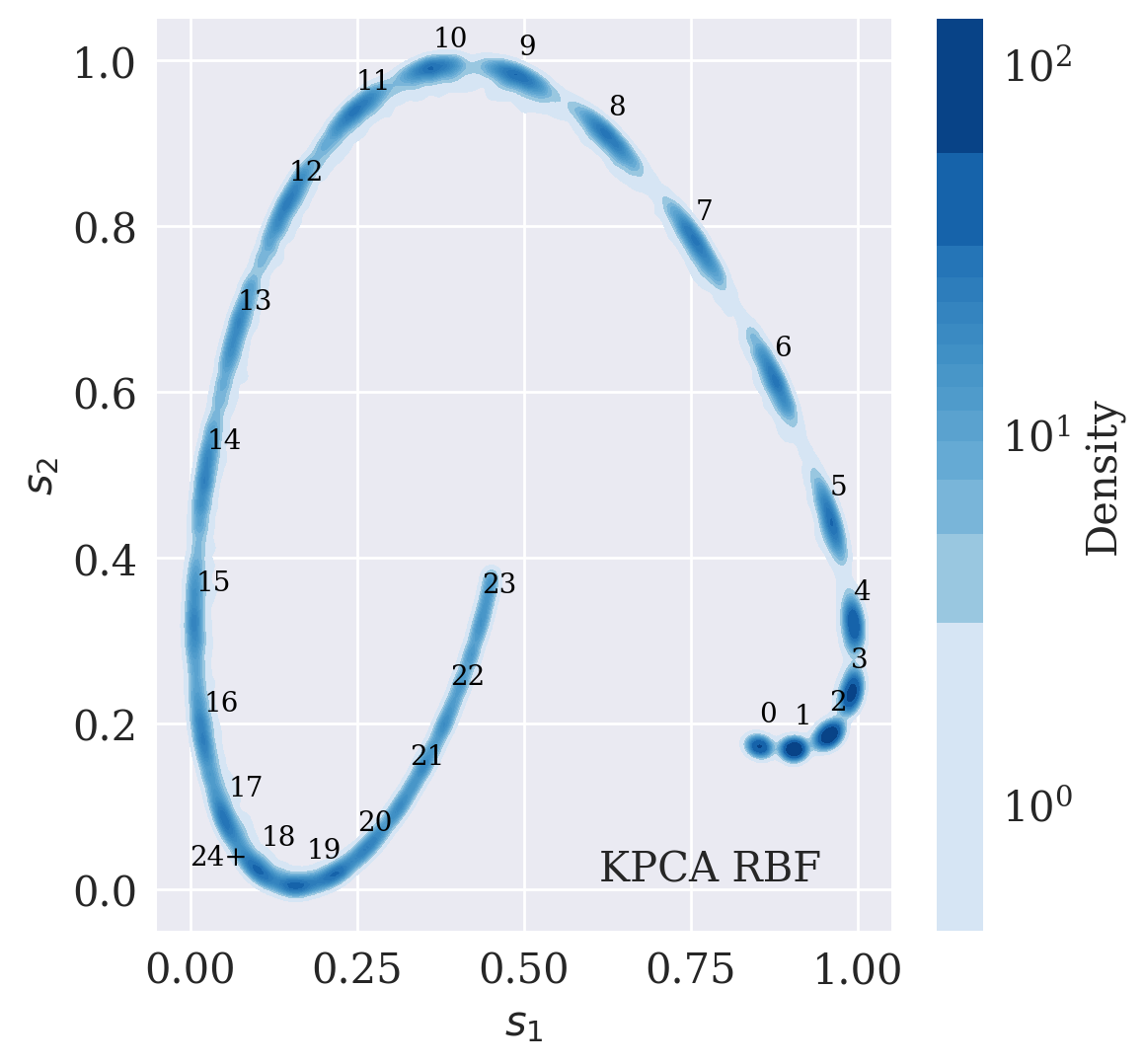

2.4Kernel PCA (Radial basis function)

X_l_KPCA_RBF = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = KernelPCA,
   n_components = 2,
   kernel="rbf",
   gamma = 0.02,
   random_state = 42
)
name_method = 'KPCA RBF'
gm = gaussian_mixture(
   X_low = X_l_KPCA_RBF[::SKIP],
   X_high = data_test,
   number_cluster = 25,
   cluster_iter = 5,
   tol = 1e-4,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   width_plot = 6,
   height_plot = 6
)

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
/srv/conda/envs/notebook/lib/python3.12/site-packages/numpy/_core/fromnumeric.py:3904: RuntimeWarning: Mean of empty slice.
  return _methods._mean(a, axis=axis, dtype=dtype,
/srv/conda/envs/notebook/lib/python3.12/site-packages/numpy/_core/_methods.py:147: RuntimeWarning: invalid value encountered in scalar divide
  ret = ret.dtype.type(ret / rcount)

/srv/conda/envs/notebook/lib/python3.12/site-packages/seaborn/distributions.py:1176: UserWarning: Log scale: values of z <= 0 have been masked
  cset = contour_func(
<Figure size 1200x1200 with 2 Axes>

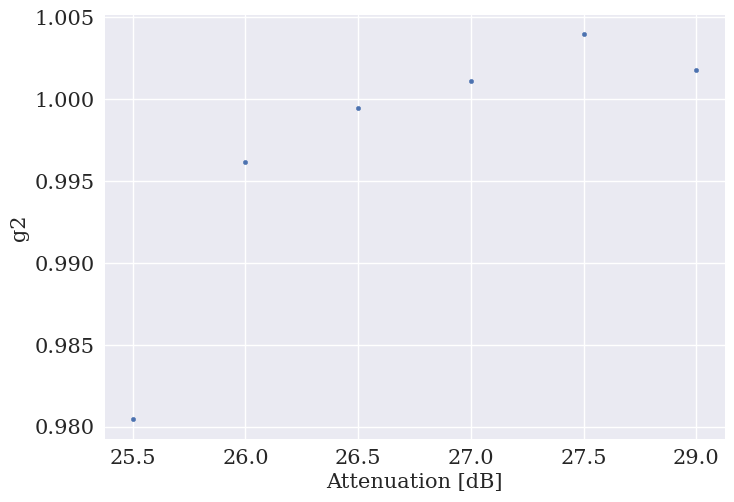

<Figure size 800x550 with 1 Axes>
gm.plot_confidence_2d(expected_prob = expected_prob)
# gm.plot_trustworthiness()
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)

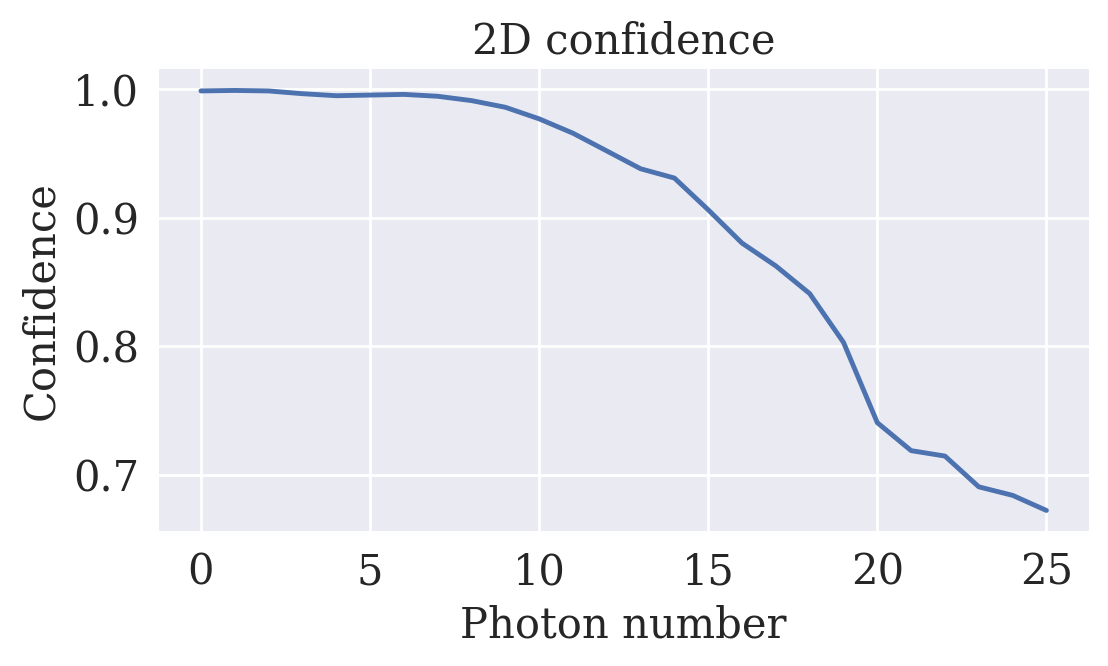

<Figure size 1200x600 with 1 Axes>

2.5Kernel PCA (Sigmoid)

X_l_KPCA_S = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = KernelPCA,
   n_components = 1,
   kernel = "sigmoid",
   gamma = 0.002,
   random_state = 42
)
name_method = 'KPCA Sig'
gm = gaussian_mixture(
   X_low = X_l_KPCA_S[::SKIP],
   X_high = data_test,
   number_cluster = 23,
   cluster_iter = 5,
   tol = 1e-4,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   width_plot = 6,
   height_plot = 6
)

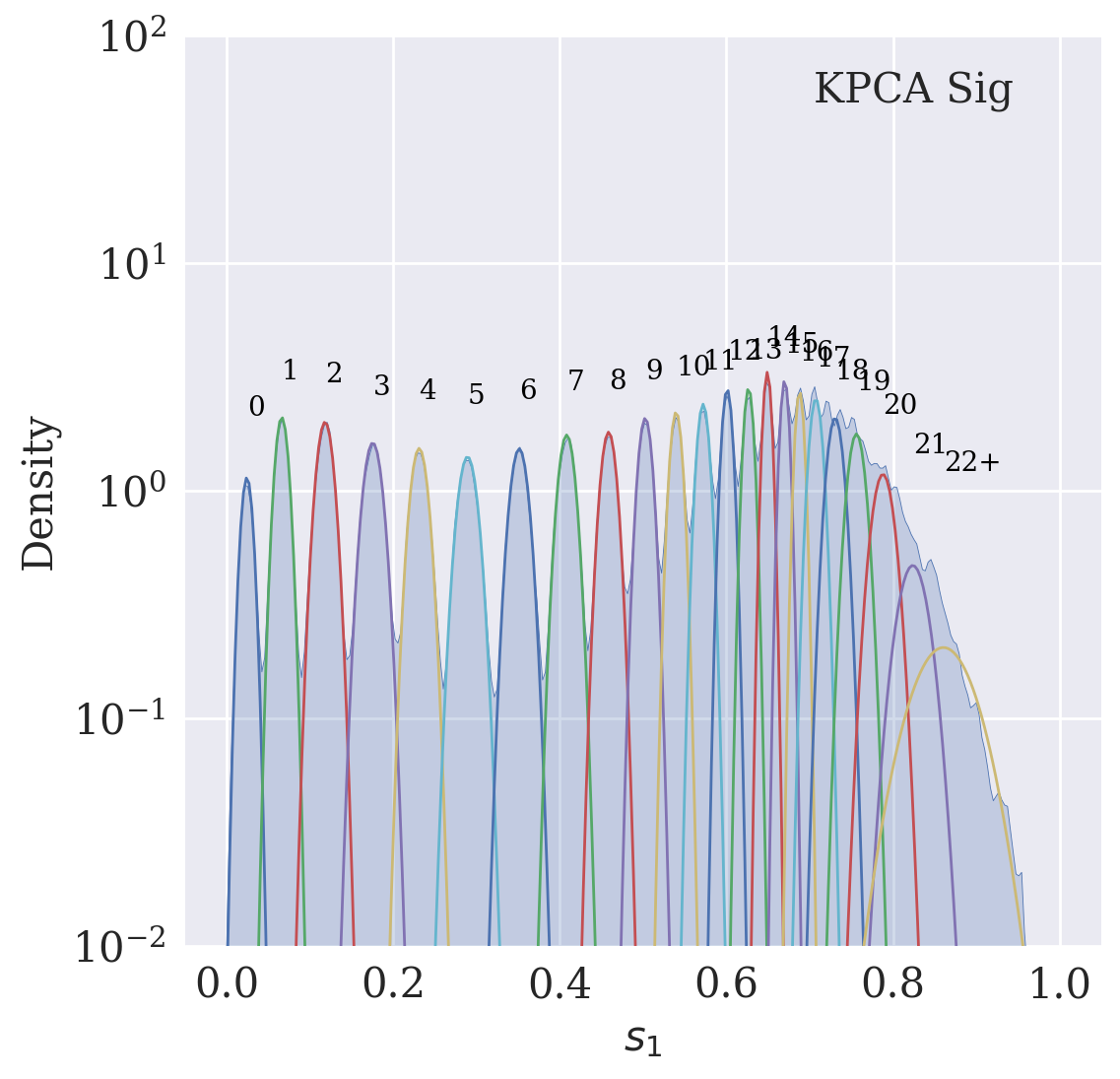

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
<Figure size 1200x1200 with 1 Axes>

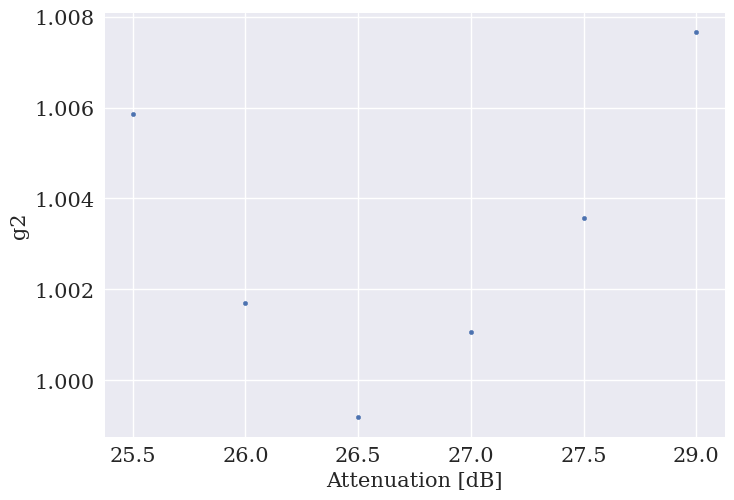

<Figure size 800x550 with 1 Axes>
gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)

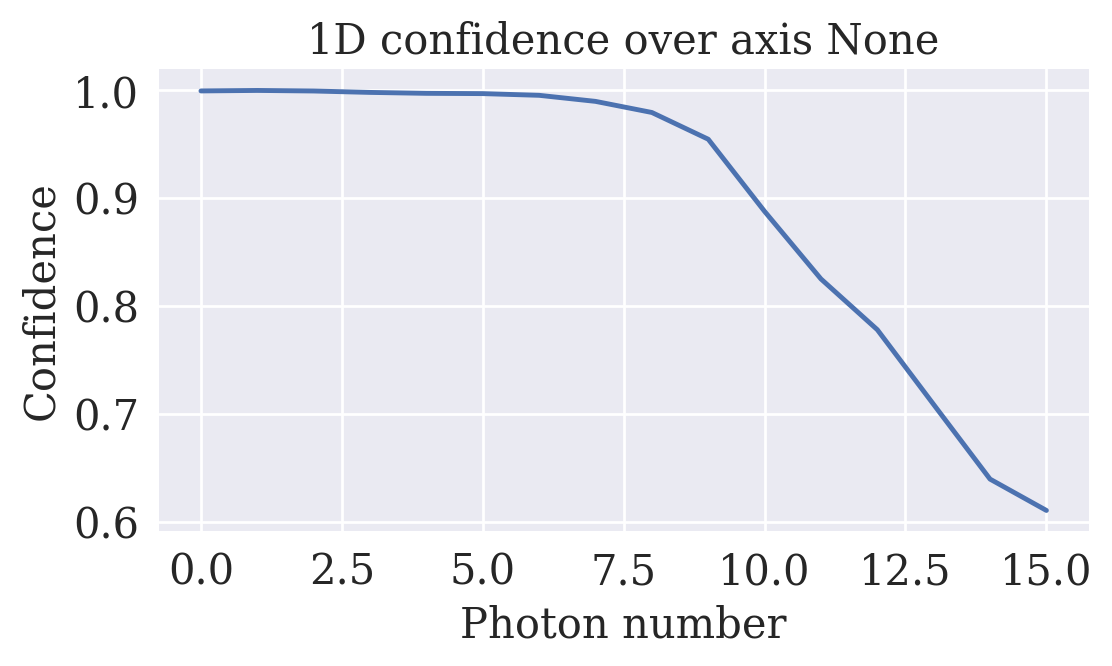

<Figure size 1200x600 with 1 Axes>

2.6Kernel PCA (Cosine)

X_l_KPCA_C = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = KernelPCA,
   n_components = 2,
   kernel = "cosine",
   gamma = 0.01,
   random_state = 42
)
name_method = 'KPCA Cos'
gm = gaussian_mixture(
   X_low = X_l_KPCA_C[::SKIP],
   X_high = data_test,
   number_cluster = 19,
   cluster_iter = 5,
   tol = 1e-4,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   width_plot = 6,
   height_plot = 6
)

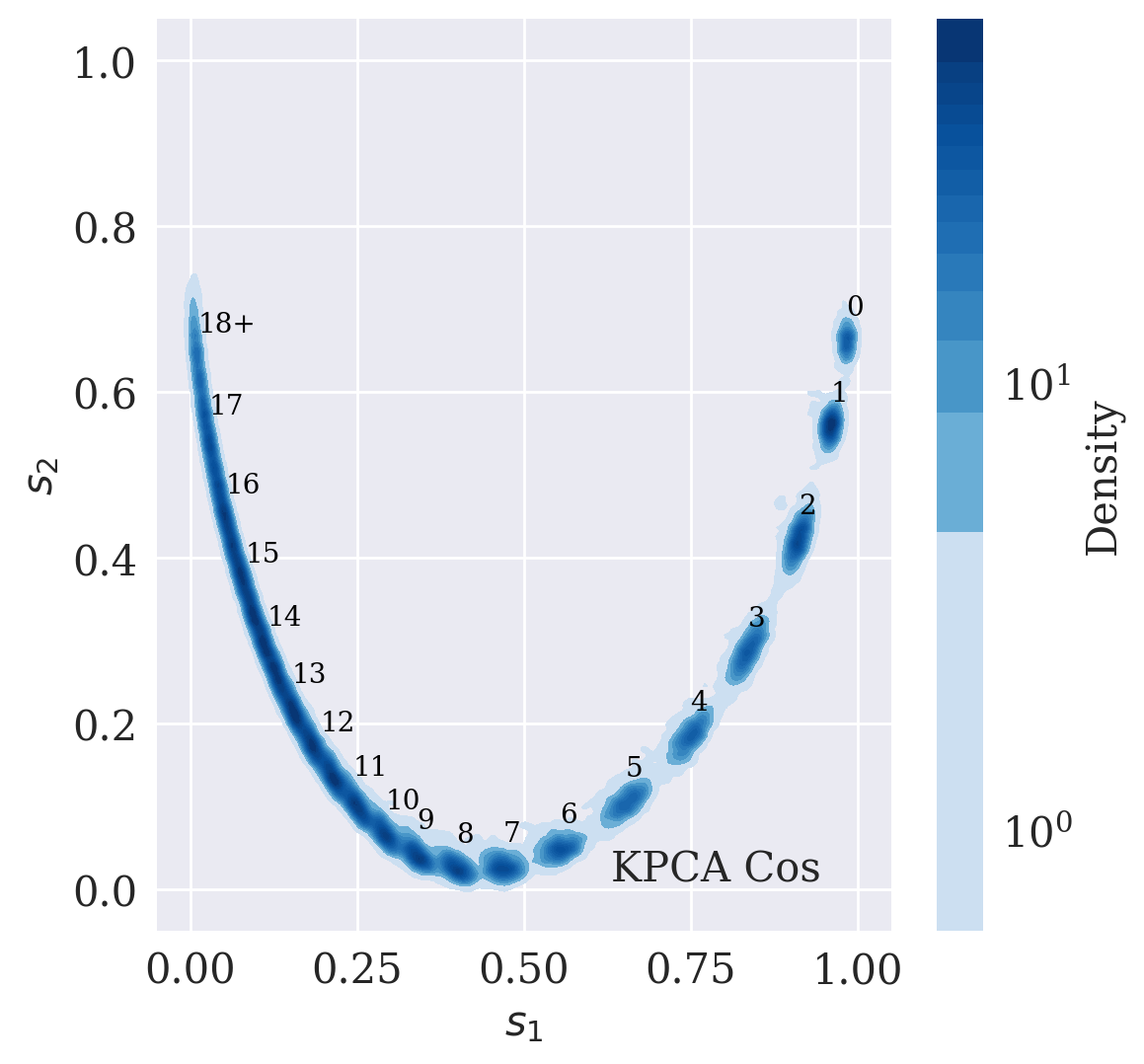

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
/srv/conda/envs/notebook/lib/python3.12/site-packages/seaborn/distributions.py:1176: UserWarning: Log scale: values of z <= 0 have been masked
  cset = contour_func(
<Figure size 1200x1200 with 2 Axes>
<Figure size 800x550 with 1 Axes>

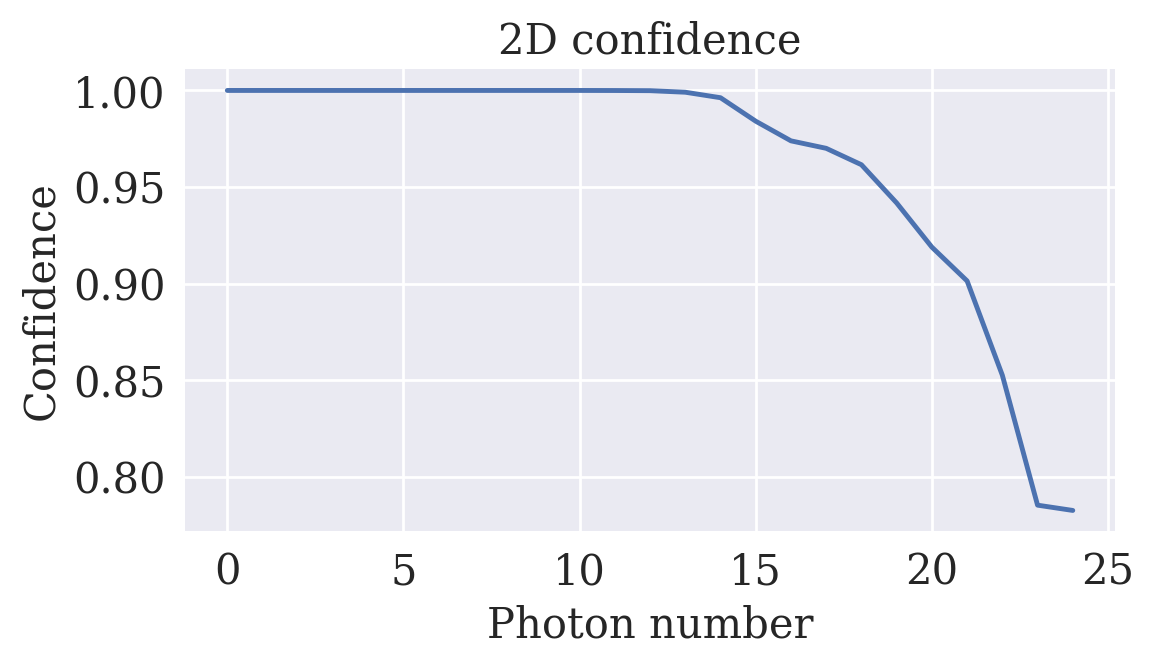

gm.plot_confidence_2d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

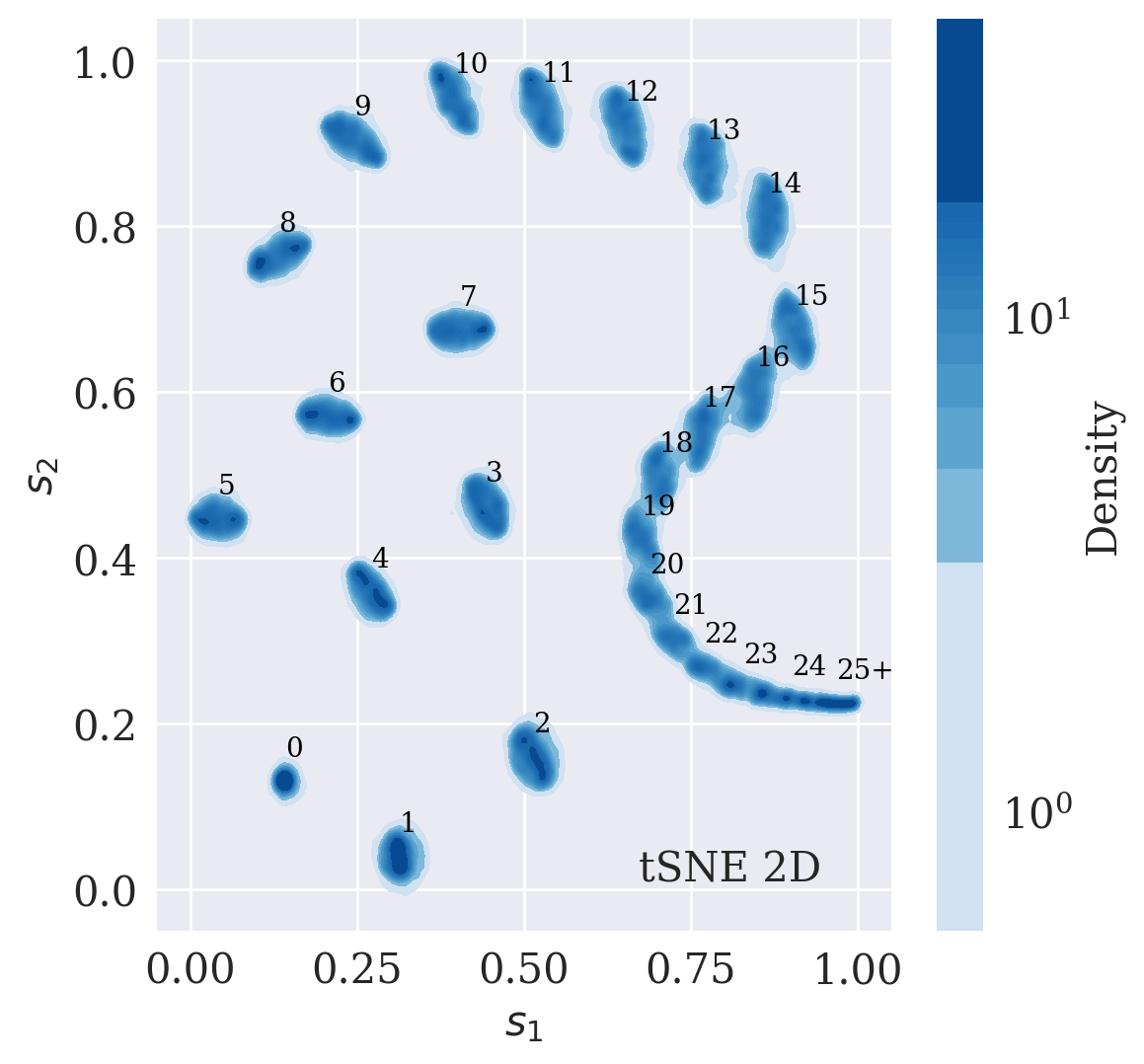

2.7t-distributed Stochastic Neighbor Embedding (t-SNE)

X_l_tSNE = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = TSNE,
   n_components = 2,
   perplexity = 450,
   random_state=42
)
name_method = 'tSNE 2D'
gm = gaussian_mixture(
   X_low = X_l_tSNE[::SKIP],
   X_high = data_test,
   number_cluster = 26,
   cluster_iter = 5,
   tol = 1e-4,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   width_plot = 6,
   height_plot = 6
)

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
/srv/conda/envs/notebook/lib/python3.12/site-packages/seaborn/distributions.py:1176: UserWarning: Log scale: values of z <= 0 have been masked
  cset = contour_func(
<Figure size 1200x1200 with 2 Axes>

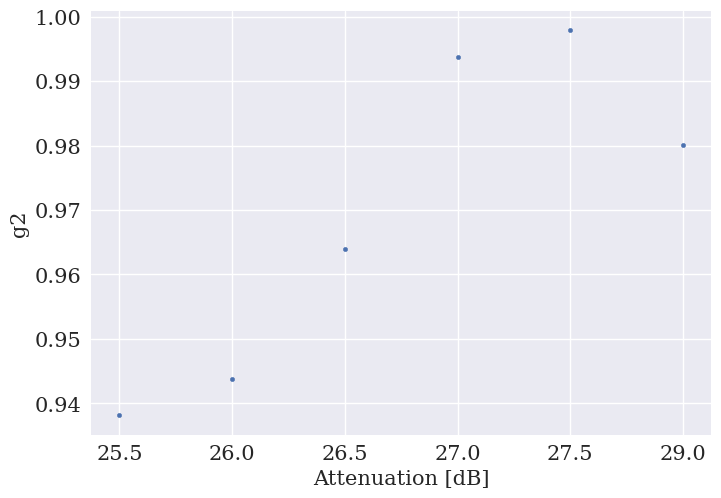

<Figure size 800x550 with 1 Axes>
gm.plot_confidence_2d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>
X_l_tSNE = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = TSNE,
   n_components = 1,
   perplexity = 450,
   random_state = 42
)

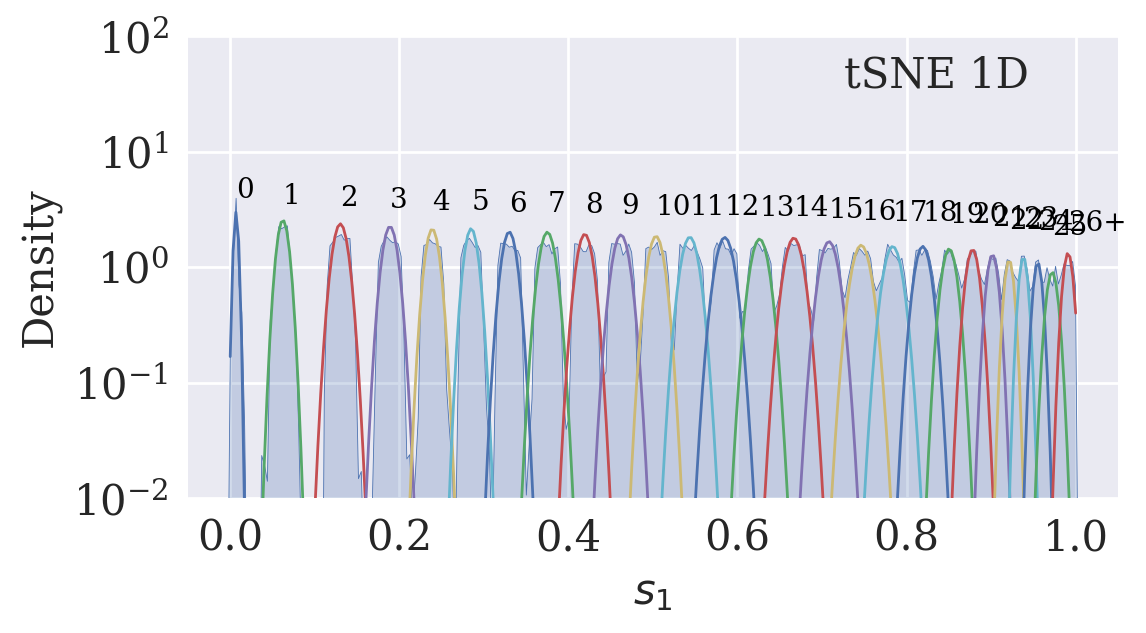

name_method = 'tSNE 1D'
gm = gaussian_mixture(
   X_low = X_l_tSNE[::SKIP],
   X_high = data_test,
   number_cluster = 27,
   cluster_iter = 5,
   tol = 1e-4,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   width_plot = 6,
   height_plot = 3
)

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>
gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

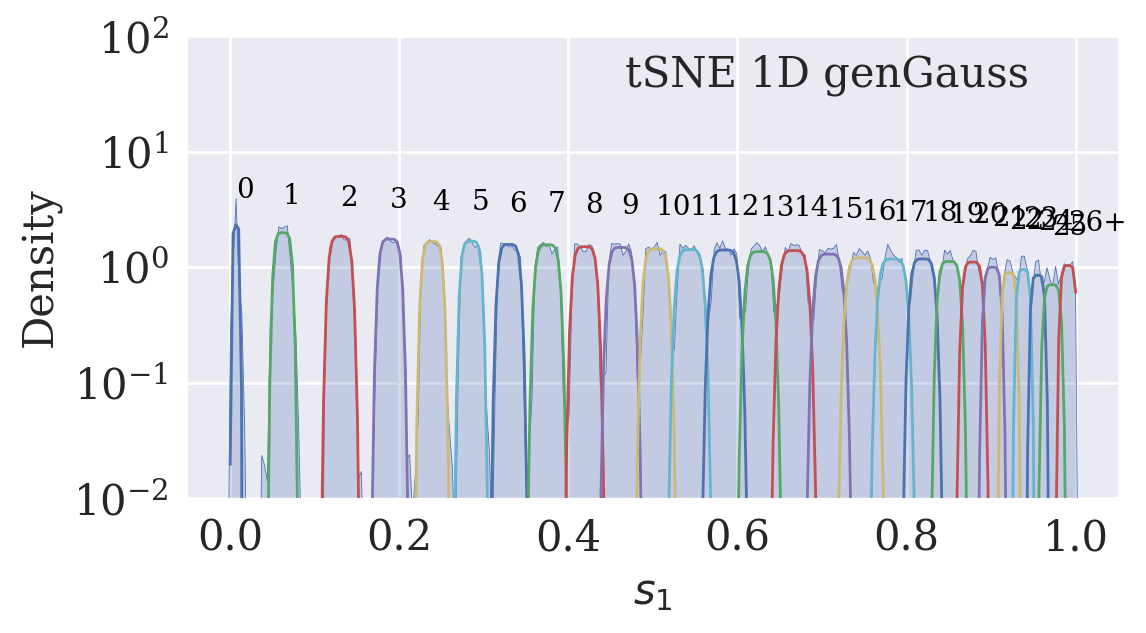

name_method = 'tSNE 1D genGauss'
gm = gaussian_mixture(
   X_low = X_l_tSNE[::SKIP],
   X_high = data_test,
   number_cluster = 27,
   cluster_iter = 5,
   tol = 1e-4,
   means_init = get_means(name_method, PATH_INIT_MEANS),
   width_plot = 6,
   height_plot = 3
)

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = False,
   plot_gen_gauss=True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>
gm.plot_confidence_1d(
   expected_prob = expected_prob,
   function = 'gen_gauss'
   )
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.8UMAP

X_l_UMAP = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD+'/umap1d',
   function = umap.UMAP,
   custom_name = '1000.npy',
   n_components = 1,
   n_neighbors = 1000,
   random_state = 42
)
name_method = 'UMAP 1D'
gm = gaussian_mixture(
   X_low = X_l_UMAP[::SKIP],
   X_high = data_test,
   number_cluster = 28,
   cluster_iter = 5,
   means_init = get_means(name_method, path = PATH_INIT_MEANS),
   tol = 1e-4,
   width_plot = 6,
   height_plot = 3
)

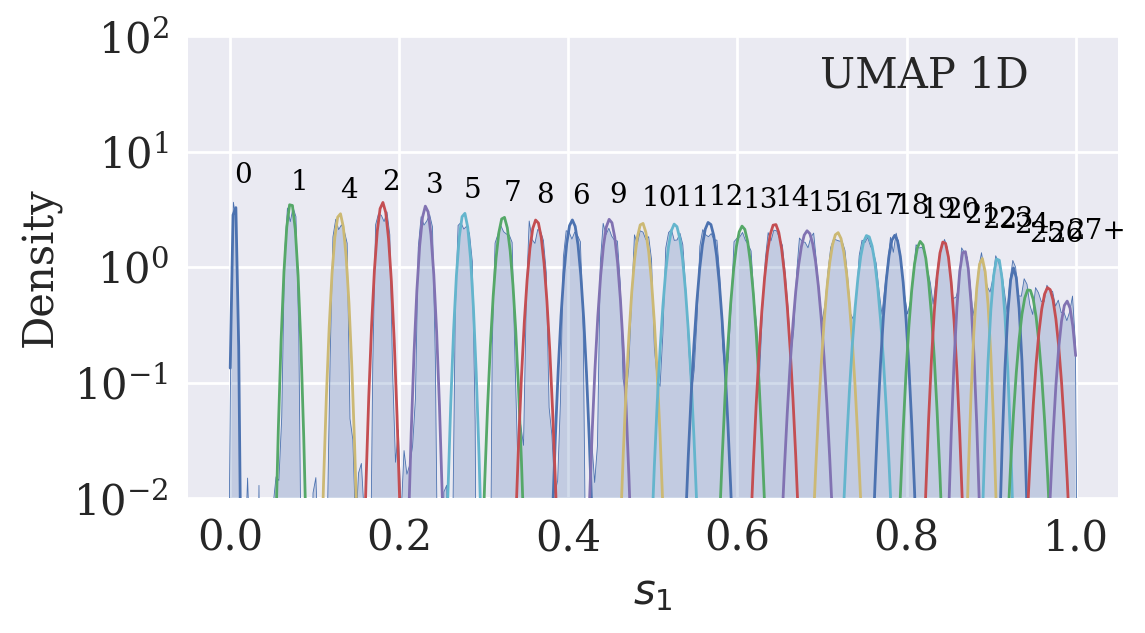

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>
gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>
X_l_UMAP = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD+'/umap2d',
   function = umap.UMAP,
   custom_name = '700.npy',
   n_components = 2,
   n_neighbors = 700,
   random_state = 42
)
name_method = 'UMAP 2D'
gm = gaussian_mixture(
   X_low = X_l_UMAP[::SKIP],
   X_high = data_test,
   number_cluster = 27,
   cluster_iter = 5,
   means_init = get_means(name_method, path = PATH_INIT_MEANS),
   tol = 1e-6,
   width_plot = 6,
   height_plot = 6
)

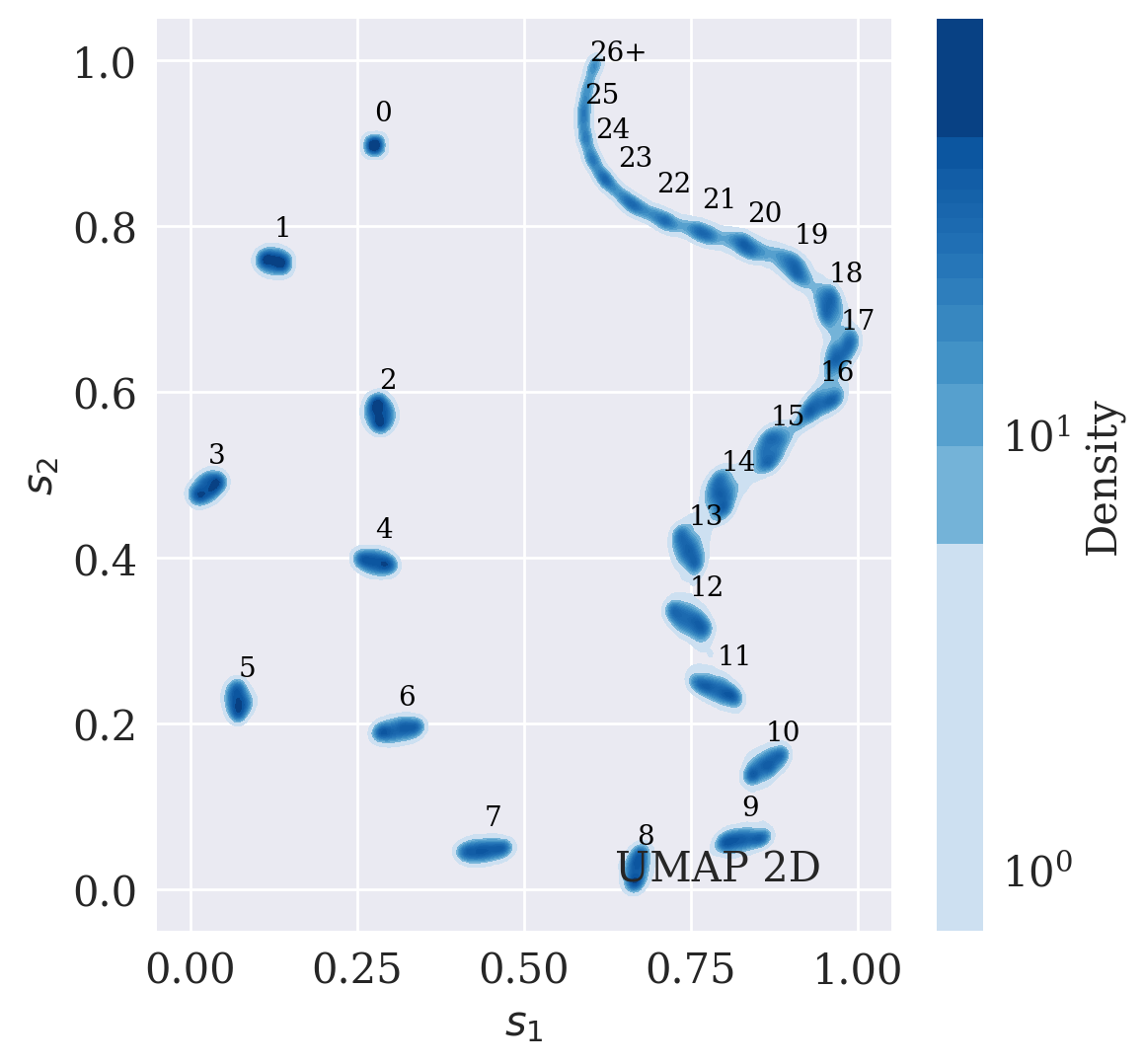

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

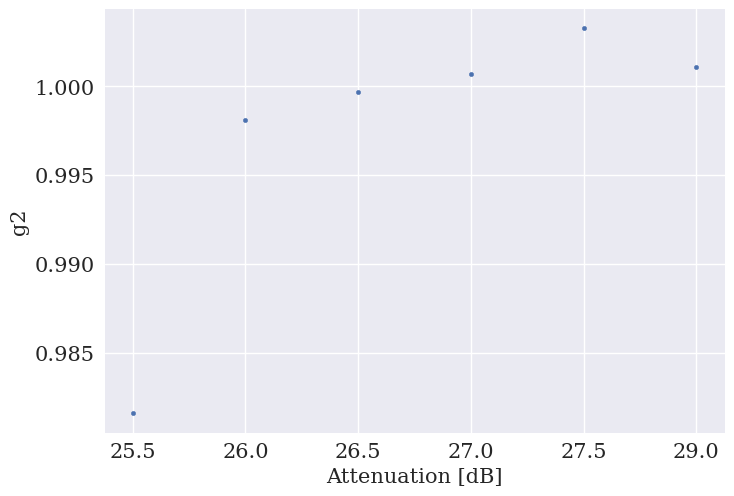

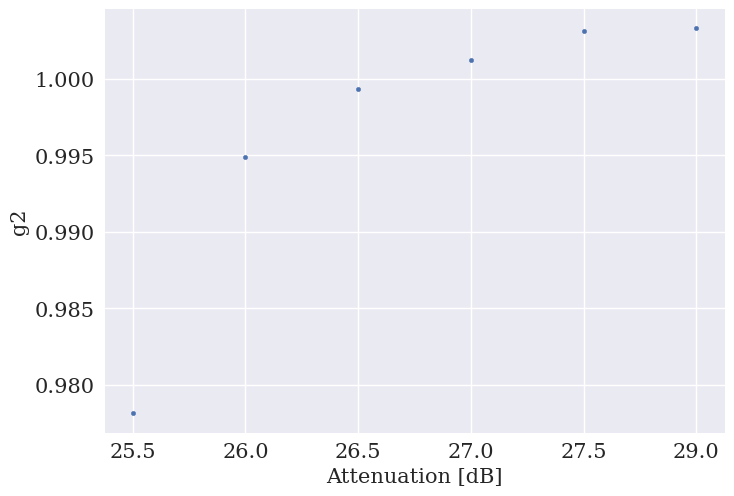

gm.plot_g2(db_test)
/srv/conda/envs/notebook/lib/python3.12/site-packages/seaborn/distributions.py:1176: UserWarning: Log scale: values of z <= 0 have been masked
  cset = contour_func(
<Figure size 1200x1200 with 2 Axes>
<Figure size 800x550 with 1 Axes>

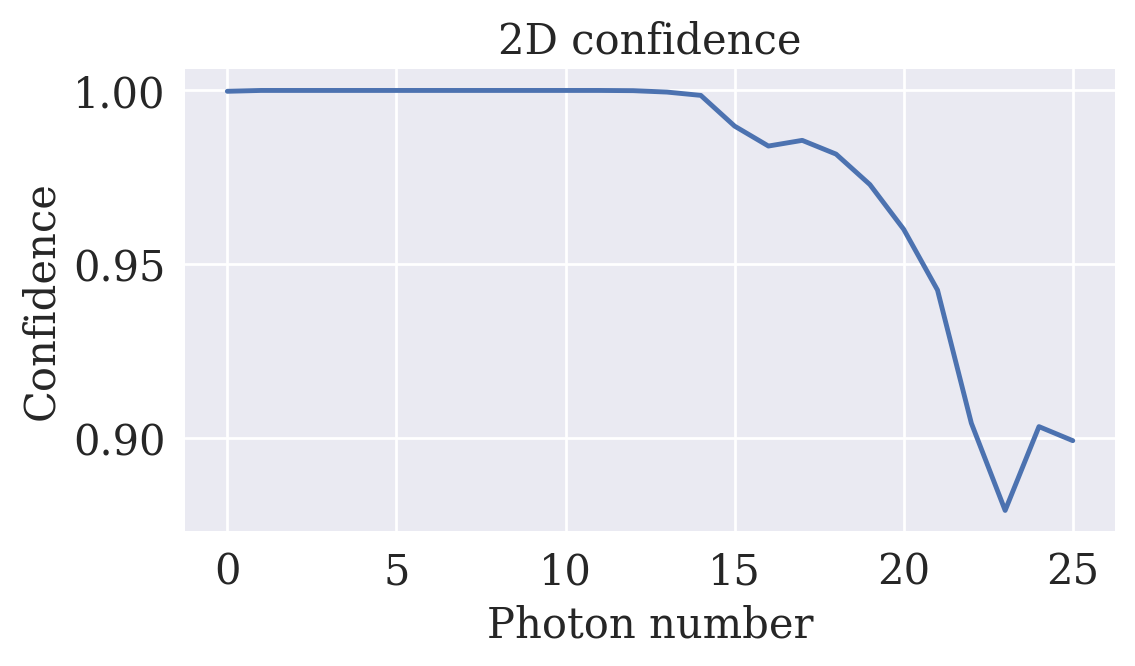

gm.plot_confidence_2d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.9Non-Negative Matrix Factorization (NMF)

X_l_NMF = sklearn_available(
   X_train = data_train+1,
   X_test = data_test+1,
   path_save = PATH_SAVE_LD,
   function = NMF,
   n_components = 1,
   max_iter = 400,
   solver = 'mu',
   beta_loss = 'kullback-leibler',
   tol = 1e-10,
   random_state = 42
)
name_method = 'NMF 1D'
gm = gaussian_mixture(
   X_low = X_l_NMF[::SKIP],
   X_high = data_test,
   number_cluster = 26,
   cluster_iter = 5,
   means_init = get_means(name_method, path = PATH_INIT_MEANS),
   tol = 1e-4,
   width_plot = 6,
   height_plot = 3
)

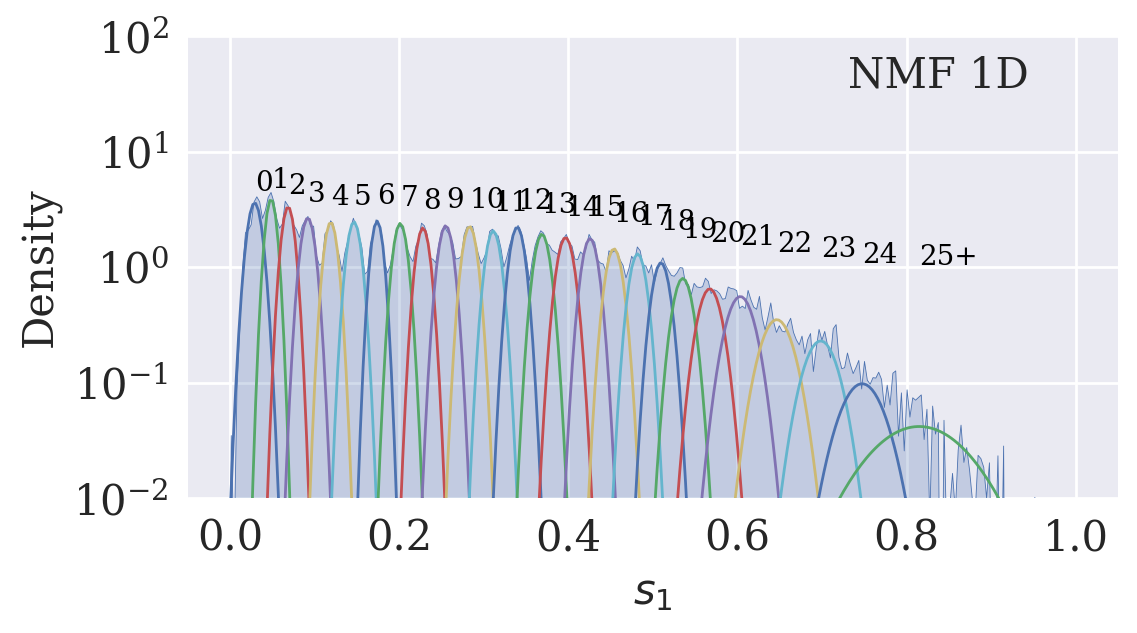

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

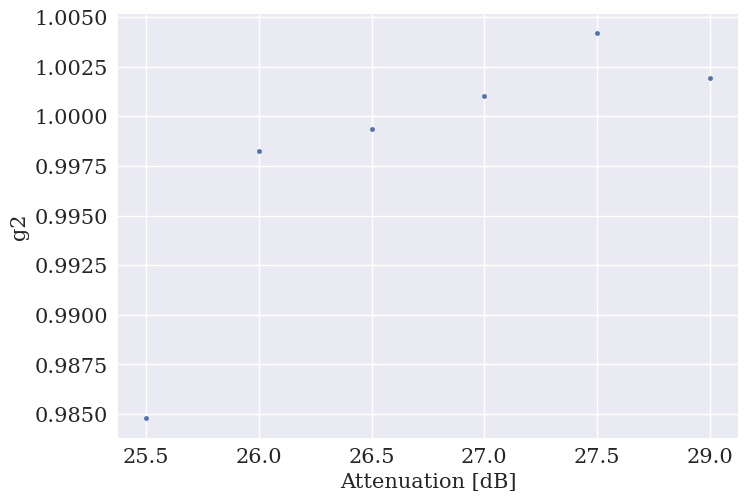

gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

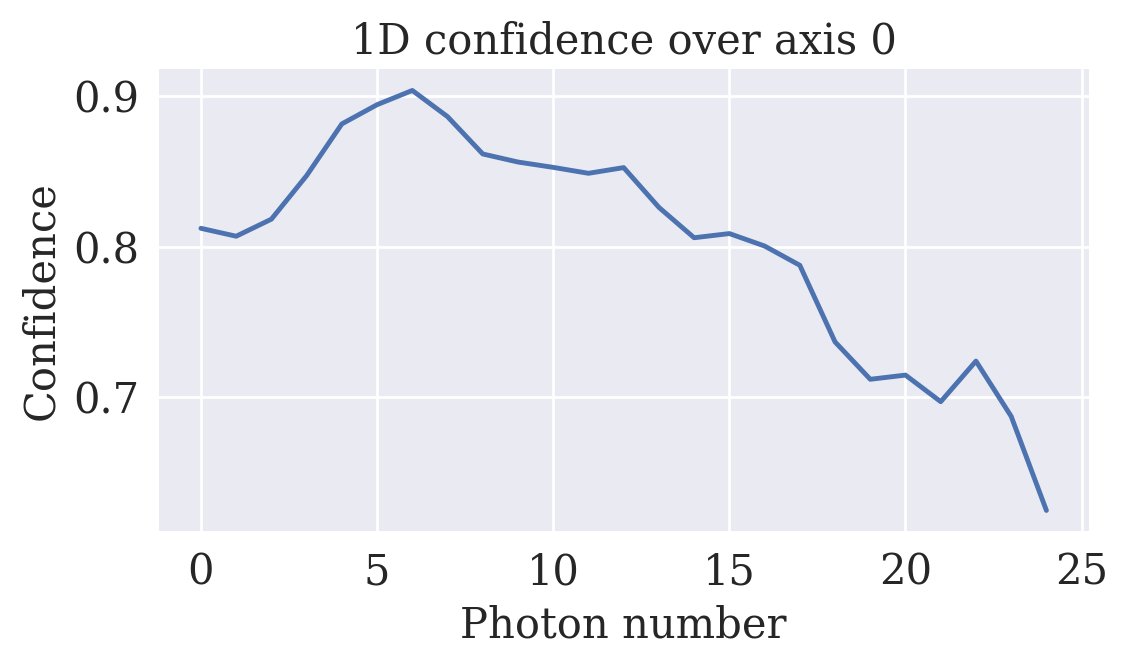

gm.plot_confidence_1d(expected_prob = expected_prob, axis=0)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.10Isomap

X_l_ISO = sklearn_available(
   X_train = data_train,
   X_test = data_test,
   path_save = PATH_SAVE_LD,
   function = Isomap,
   n_neighbors = 100,
   n_components = 1,
   eigen_solver = "arpack"
)
name_method = 'ISO 1D'
gm = gaussian_mixture(
   X_low = X_l_ISO[::SKIP],
   X_high = data_test,
   number_cluster = 35,
   cluster_iter = 5,
   means_init = get_means(name_method, path = PATH_INIT_MEANS),
   tol = 1e-4,
   width_plot = 6,
   height_plot = 3
)

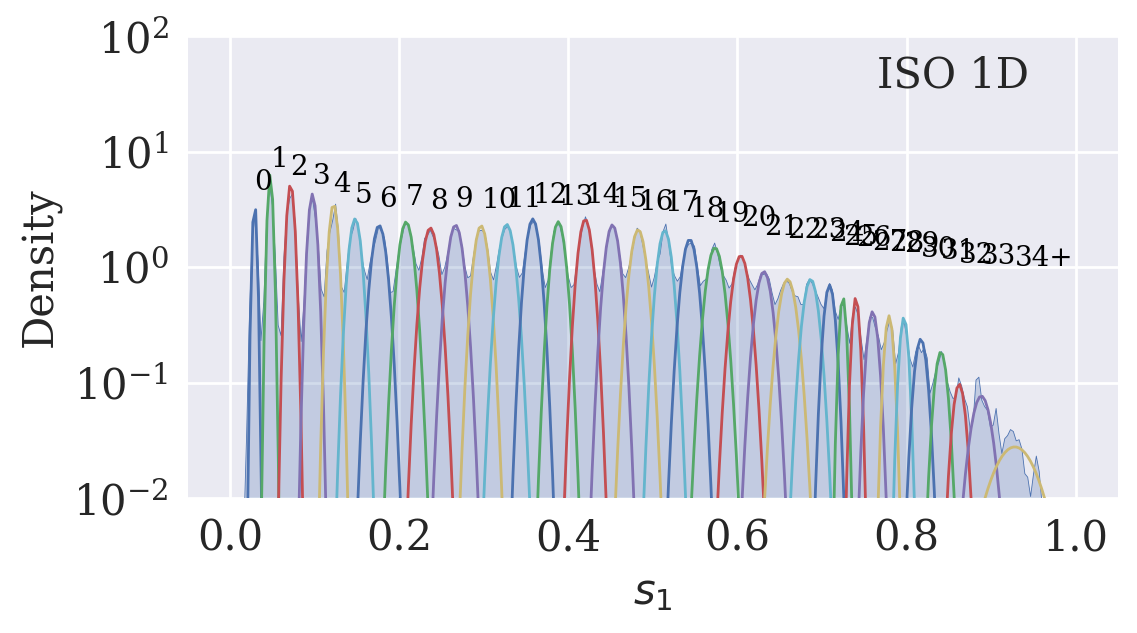

gm.plot_density(
   bw_adjust = 0.1,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

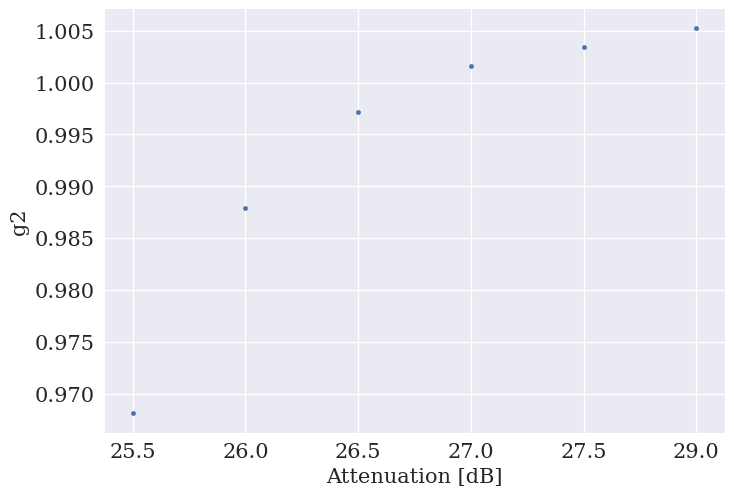

gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

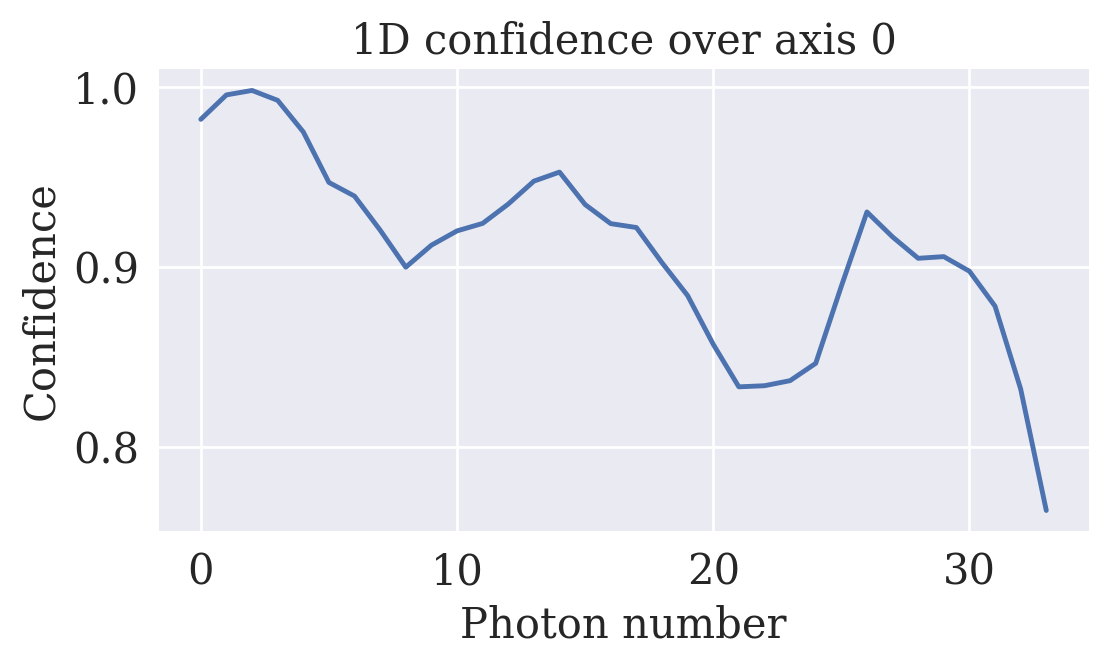

gm.plot_confidence_1d(expected_prob = expected_prob, axis=0)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.11Parametric t-SNE

model = load_model(Network, f'src/Parametric_TSNE/model 1D').to(device='cpu')

data_test_ = torch.from_numpy(data_test).float().view(-1, 350).to(device='cpu')
data_test_ = (data_test_ - data_test_.min()) / (data_test_.max() - data_test_.min())

with torch.no_grad():
    X_l_PTSNE = model(data_test_, encode = True).cpu().numpy()
name_method = 'PTSNE 1D'
gm = gaussian_mixture(
   X_low = X_l_PTSNE,
   X_high = data_test,
   number_cluster = 26,
   cluster_iter = 5,
   means_init = get_means(name_method, path = PATH_INIT_MEANS),
   tol = 1e-4,
   width_plot = 6,
   height_plot = 3
)

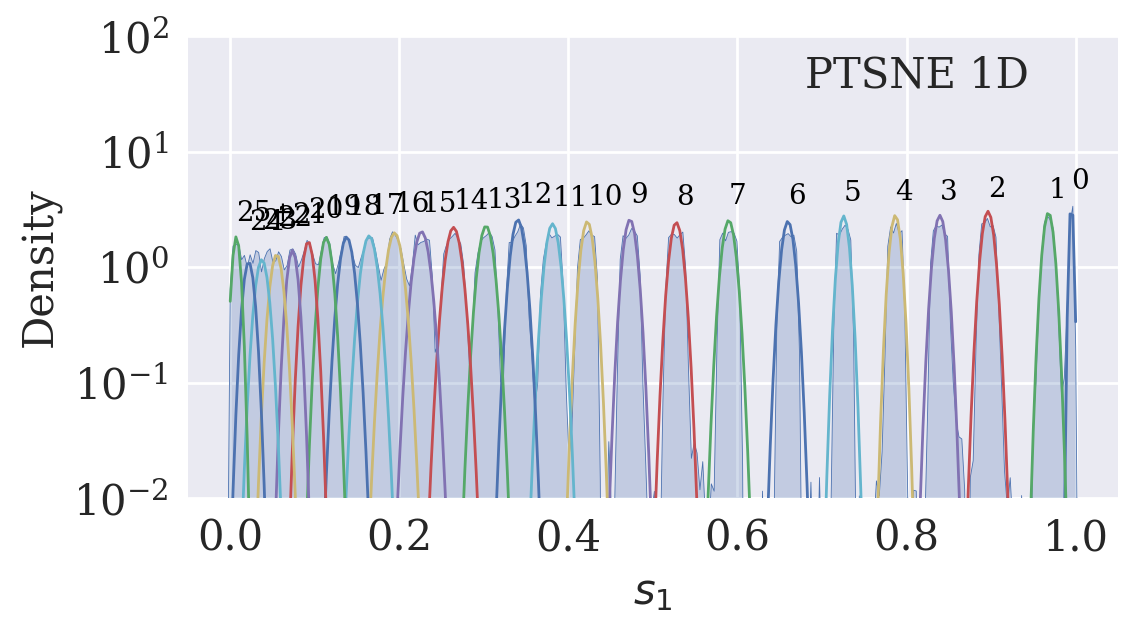

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)

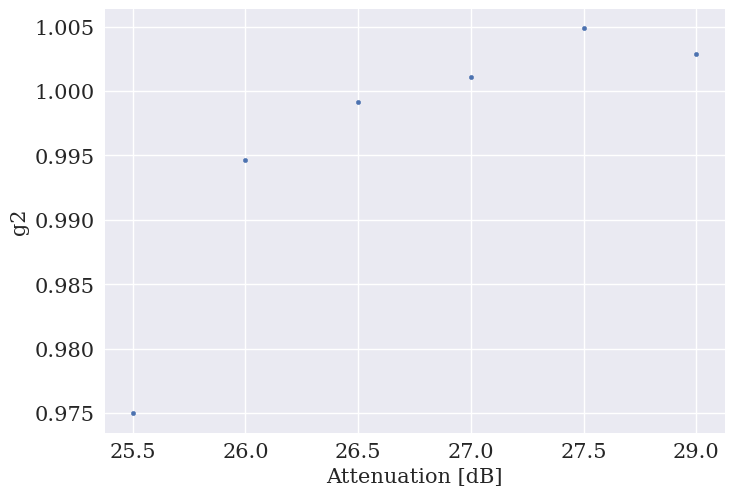

gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

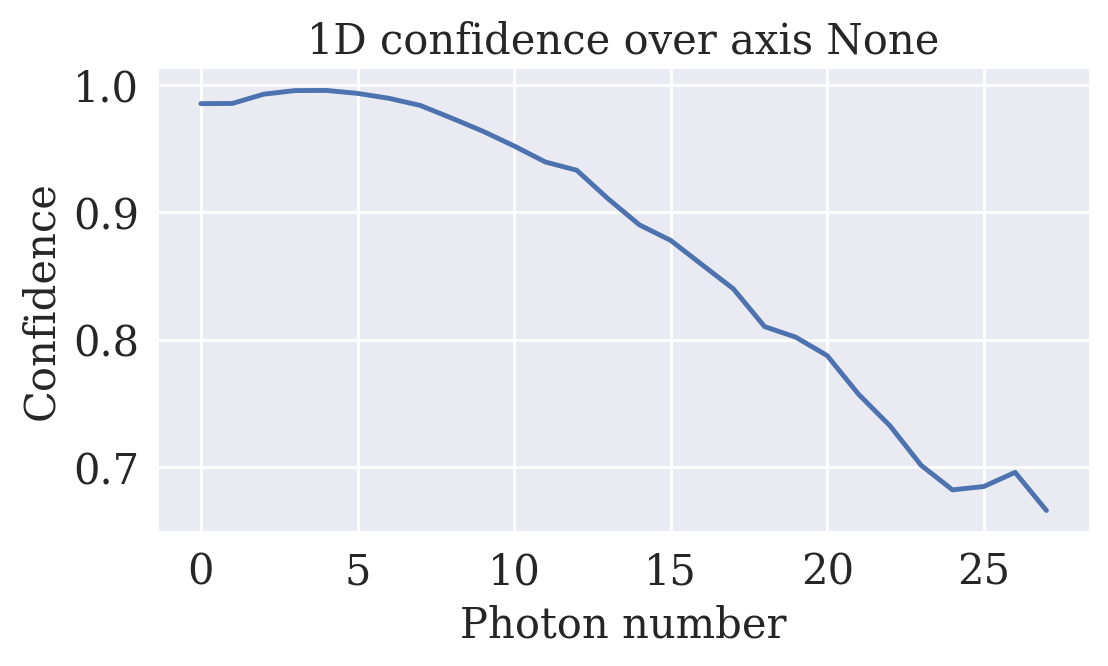

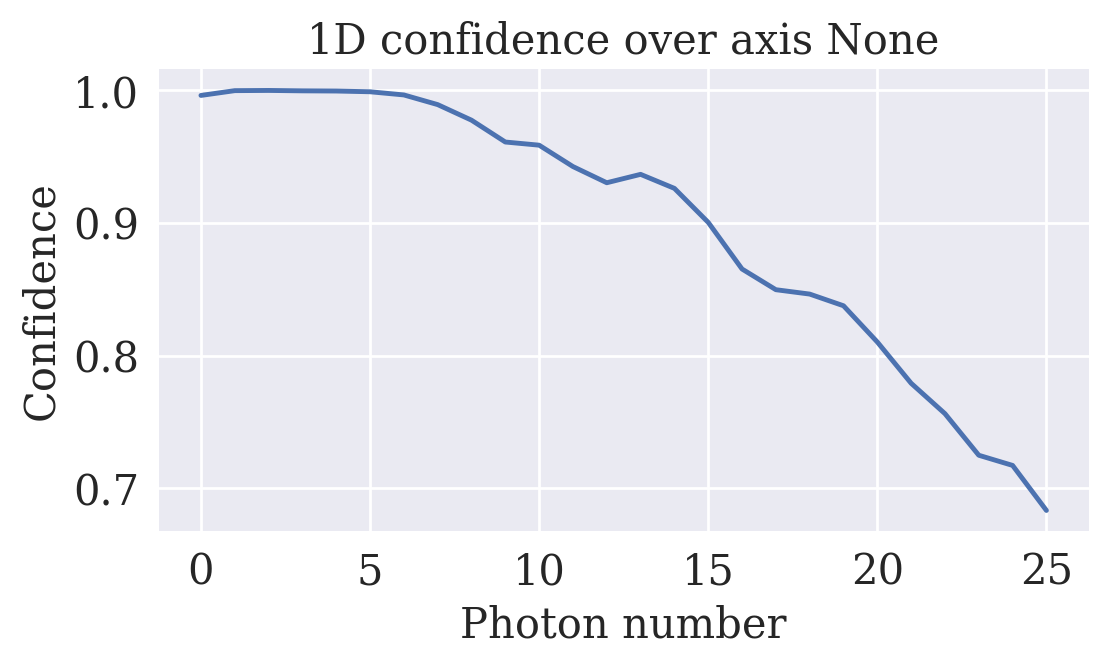

gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>

2.12Parametric UMAP

model = load_pumap('src/Parametric_UMAP/model 1D/model.ckpt').to('cpu')
X_PUMAP = model.encoder(torch.from_numpy(data_test).view(-1,350).to(dtype=torch.float)).detach().numpy()
/srv/conda/envs/notebook/lib/python3.12/site-packages/pytorch_lightning/utilities/parsing.py:208: Attribute 'encoder' is an instance of `nn.Module` and is already saved during checkpointing. It is recommended to ignore them using `self.save_hyperparameters(ignore=['encoder'])`.

name_method = 'PUMAP 1D'
gm = gaussian_mixture(
   X_low = -X_PUMAP,
   X_high = data_test,
   number_cluster = 27,
   cluster_iter = 5,
   means_init = get_means(name_method, path = PATH_INIT_MEANS),
   tol = 1e-5
)

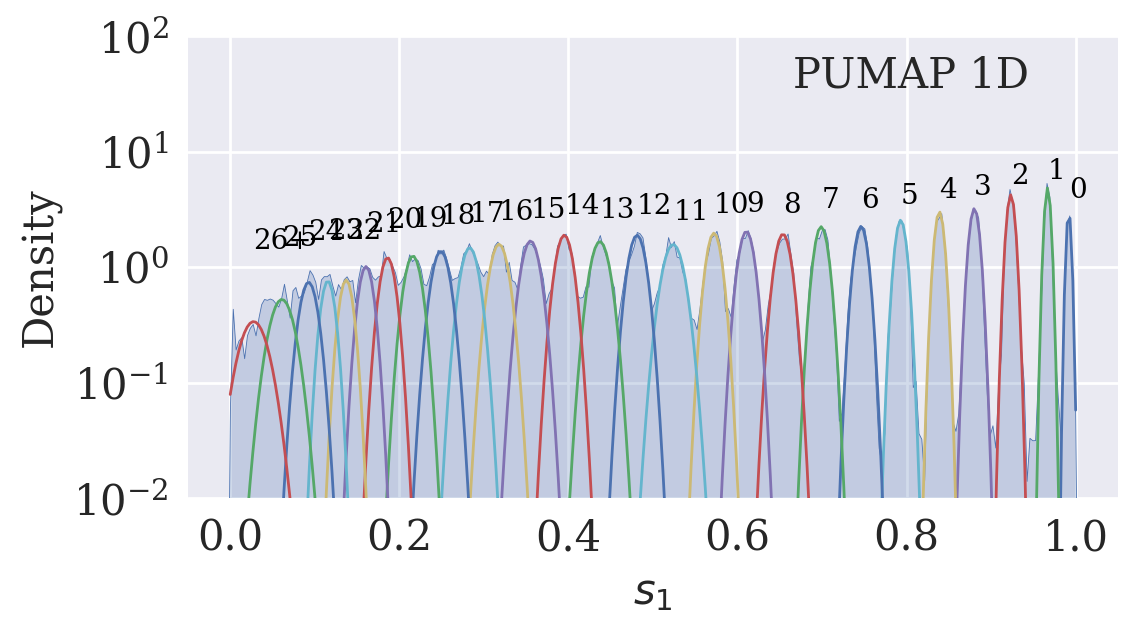

gm.plot_density(
   bw_adjust = 0.03,
   plot_gaussians = True,
   text = name_method,
   save_path = PATH_SAVE_D
)
gm.plot_g2(db_test)
<Figure size 1200x600 with 1 Axes>
<Figure size 800x550 with 1 Axes>

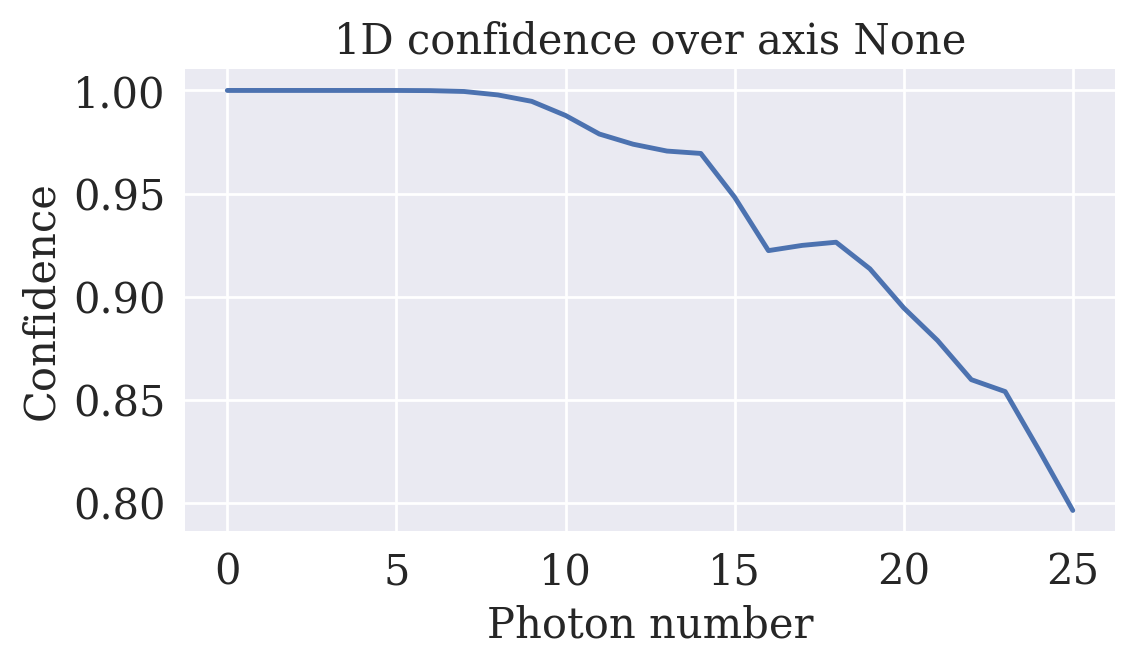

gm.plot_confidence_1d(expected_prob = expected_prob)
save_results(
   gm = gm,
   name_method = name_method,
   path = PATH_RESULTS
)
<Figure size 1200x600 with 1 Axes>
Accurate Unsupervised Photon Counting from Transition Edge Sensor Signals
Context
Accurate Unsupervised Photon Counting from Transition Edge Sensor Signals
Methods: Geometric
